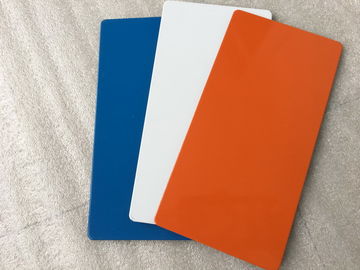

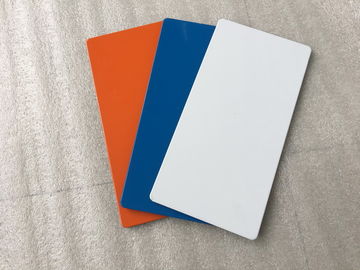

Various Colors ACP Sheet Sign Boards Pollutant Resistance Easy To Maintain

China Various Colors ACP Sheet Sign Boards Pollutant Resistance Easy To Maintain supplier

Large Image :  Various Colors ACP Sheet Sign Boards Pollutant Resistance Easy To Maintain

Product Details:

Place of Origin: CHINA
Brand Name: ALUONTOP or CUSTOM BRAND
Certification: ISO9001:2008 , ISO14001:2015
Model Number: 2000*3000*4mm (0.30/0.30mm)

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Strong wooden packages
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 250,000 + square meters + per month
Detailed Product Description
Specification: 2000*3000*4mm (0.30/0.30mm) COLOR: Custom Colors Are Available For Your Choice
Packing: Strong Wooden Cases With Fumigation ALUMINUM ALLOY: ALLOY3003, ALLOY3105, ALLOY1100
MOQ: 500 Square Meters For A Single Specification Paint: Polyester Coating

Polyester paint Aluminum Sign Panels 2000*3000*4mm (0.30/0.30mm) with purple color

Dimensions:
2000*3000*4mm (0.30/0.30mm)
Non-standard Aluminum Sign panels are acceptable



2) Outstanding weather poof and fireproof properties

3) Super peeling strength
4) Even coating, various colors
5) Impact resistant, light weight and easy to process
6) Colors: 70 colors optional, new colors available upon request
7) Easy maintenance
8) Application: Indoor & outdoor wall, ceiling, vehicle, vessel and furniture decoration



Polyester paint Aluminum Sign Panels Standard Index Result Conclusion
Surface Appearance Clean Surface without swell, scrath and aberration Pass Qualified
Deviation of Dimension Deviation of Diagonal: ≤5mm 1mm Qualified
Thickness of Coating ≥18um 19um Qualified
Hardness of Pencil ≥HB 2H Qualified
Toughness of Coating ≤2T 2T Qualified
Impact Strength 30 Kg.cm Without paint off and crack Pass Qualified
Boiling Water Resistance Boiling for 2h without change Unchanged Qualified
Acid Resistance Immerse Surface with 2% HCI(v/v) for 24h without change Unchanged Qualified
Alkali Resistance Immerse Surface with 2% NaOH(m/m) for 24h without change Unchanged Qualified
Solvent Resistance Clean 200 times without change Bottom unrevealed Qualified
Cleaning Resistance ≥10000 times without change Unchanged Qualified
Bend Strength ≥100Mpa 121Mpa Qualified
Flexuous Modulus of Elasticity ≥2.0x10 4 Mpa 3.12x10 4 Mpa Qualified
Cutting Strength ≥28.0 Mpa 32.0 Mpa Qualified
180°Peel strength ≥7.0 N/mm 11.2N/mm Qualified
Salt Haze Resistance(3000h) Not less than Grade 2 Grade 1 Qualified
Artificial Weathering(4000h) Artificial Resistance Aberration ≤4.0 1.24 Qualified
Aging Resistance out of Light Not less than Grade 2 Grade 1 Qualified

Specifications:
1. Standard:
Standard Width: 1220mm, 1270mm, 1500mm, 1575mm, 2000mm (Special width is also available)
Standard Length: 2000mm, 2500mm,3660mm, 4880mm ,5000mm the length can be any lengthi you like.
Polyester paint:
Total thickness:2mm, 3mm, 4mm, 5mm, 6mm
Alu. Thickness: 0.1mm, 0.12mm, 0.15mm, 0.18mm, 0.21mm, 0.25mm, 0.3mm, 0.35mm, 0.4mm, 0.45mm, 0.5mm

Other specifications available, according to customers' requirements
3) Various colors available, according to customers' requirements
4) High impact resistance and good plasticity
5) Efficiently lightened burden for walls
6) Strengthened impact resistance for constructions
7) Great weather adaptabilities, high intensity, and easy maintenance
8) Perfect sound insulation, thermal resistance and fire retardant capability
9) Easy installation, apparently shortened installation time
10) Quality warranty:
      10-year guarantee for polyester aluminum composite panels

(Notes: Optional items & customers colors are subject to the respective minimum quantity. )

Package:
Strong wooden case
