Anti - Water Aluminum Composite Cladding Panels With 1500 * 3000 * 4mm Size

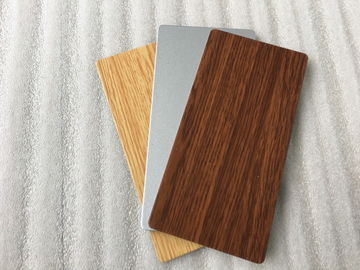

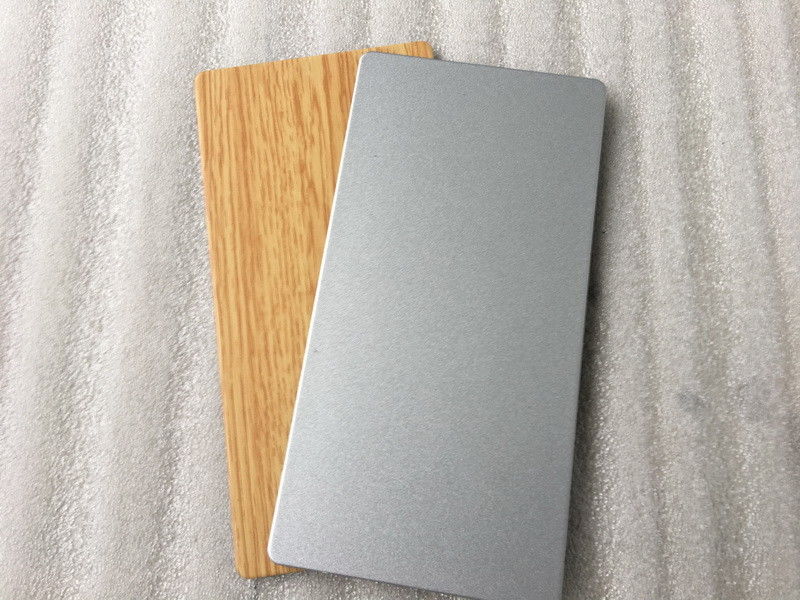

Large Image : Anti - Water Aluminum Composite Cladding Panels With 1500 * 3000 * 4mm Size

Product Details:

Brand Name:	OEM
Certification:	ISO9001:2008, ISO14001:2015
Model Number:	1,500 * 3,000mm

Payment & Shipping Terms:

Minimum Order Quantity:	negotiation
Price:	negotiation
Packaging Details:	Strong wooden packages according to customer requirements
Delivery Time:	15 days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	250,000 + square meters + per month

Contact Now

Detailed Product Description

ALUMINUM ALLOY:	AA1100, AA3003, AA3105, AA5005	COLOR:	Any Color Is Available
PACKAGES:	Strong Wooden Packages	SIZE:	Width From 900mm-2000mm, Length Can Be Any Length You Need
MOQ:	500 Square Meter	PAINT:	Polyester, FEVE , PVDF
High Light:	aluminum composite cladding , acm building material

Polyester paint Aluminium composite Material 1500*3000*4mm (0.30/0.30mm) with Glossy white/ Glossy Black

Dimensions:
1500 * 3000 * 4mm (0.30/0.30mm)
Non-standard panels are available
Advantages:
Excellent Coating
High Peeling Strength
Lightweight and Rigidity
Color Uniformity and Durability
Excellent Insulation of Thermal Conductivity
Anti-toxicity and Safety
Workability

Items (POLYESTER ACP)		Standard Index	Result	Conclusion
Appearance		Clean Surface without swell, scrath and aberration	Pass	Qualified
Deviation of Dimension		Deviation of Diagonal: ≤5mm	1mm	Qualified
Thickness of Coating		≥18um	19um	Qualified
Hardness of Pencil		≥HB	2H	Qualified
Toughness of Coating		≤2T	2T	Qualified
Impact Strength		30 Kg.cm Without paint off and crack	Pass	Qualified
Boiling Water Resistance		Boiling for 2h without change	Unchanged	Qualified
Acid Resistance		Immerse Surface with 2% HCI(v/v) for 24h without change	Unchanged	Qualified
Alkali Resistance		Immerse Surface with 2% NaOH(m/m) for 24h without change	Unchanged	Qualified
Solvent Resistance		Clean 200 times without change	Bottom unrevealed	Qualified
Cleaning Resistance		≥10000 times without change	Unchanged	Qualified
Bend Strength		≥100Mpa	121Mpa	Qualified
Flexuous Modulus of Elasticity		≥2.0x10 4 Mpa	3.12x10 4 Mpa	Qualified
Cutting Strength		≥28.0 Mpa	32.0 Mpa	Qualified
180°Peel strength		≥7.0 N/mm	11.2N/mm	Qualified
Salt Haze Resistance(3000h)		Not less than Grade 2	Grade 1	Qualified
Artificial Weathering(4000h)	Artificial Resistance Aberration	≤4.0	1.24	Qualified
Artificial Weathering(4000h)	Aging Resistance out of Light	Not less than Grade 2	Grade 1	Qualified

Specifications:
1. Standard:
Total thickness: 3mm, 4mm
Alu. Thickness: 0.21mm,0.30mm
Width: 1220, 1250,1500,1550,2000mm (Special width is also available)
Length: standard length 2440mm,3050mm,3660mm, 4880mm ,5000mm or any length you need

Option:
Polyester paint
Total thickness:2mm, 3mm, 4mm, 5mm, 6mm
Alu. Thickness: 0.1mm, 0.12mm, 0.15mm, 0.18mm, 0.21mm, 0.25mm, 0.3mm, 0.35mm, 0.4mm, 0.45mm, 0.5mm

Other specifications available, according to customers' requirements
3) Various colors available, according to customers' requirements
4) High impact resistance and good plasticity
5) Efficiently lightened burden for walls
6) Strengthened impact resistance for constructions
7) Great weather adaptabilities, high intensity, and easy maintenance
8) Perfect sound insulation, thermal resistance and fire retardant capability
9) Easy installation, apparently shortened installation time
10) Quality warranty:

A) 10-year guarantee for polyester aluminum composite panels

(Notes: Optional items & customers colors are subject to the respective minimum quantity. )

Package:
Strong wooden case
