Black PVDF Paint ACM Wall Panels , Lightweight Aluminum Metal Cladding Material

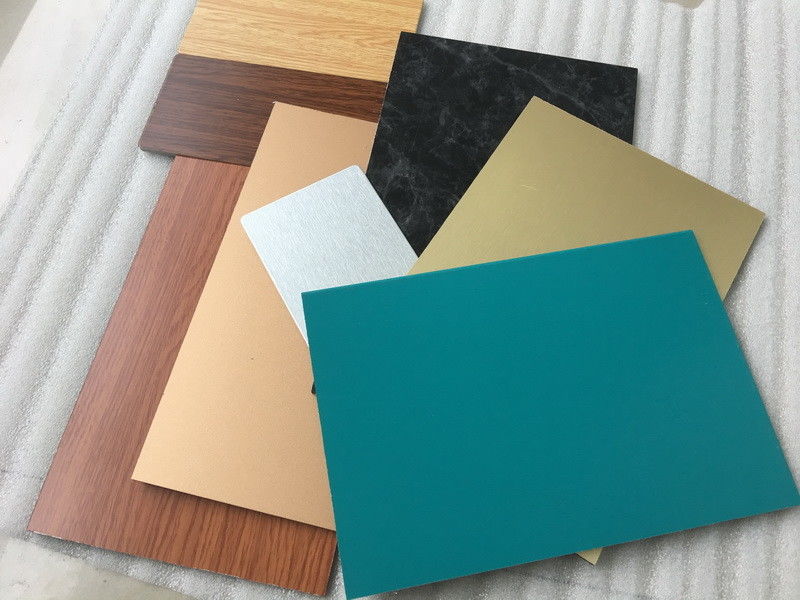

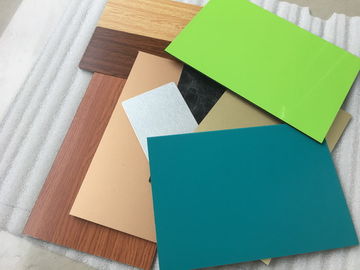

Large Image : Black PVDF Paint ACM Wall Panels , Lightweight Aluminum Metal Cladding Material

Product Details:

Brand Name:	OEM
Certification:	ISO9001:2008, ISO14001:2015
Model Number:	1,570 x 5,800 x 4mm (0.30/0.30mm)

Payment & Shipping Terms:

Minimum Order Quantity:	negotiation
Price:	negotiation
Packaging Details:	Strong wooden packages according to customer requirements
Delivery Time:	15 days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	250,000 + square meters + per month

Contact Now

Detailed Product Description

ALUMINUM ALLOY:	ALLOY 1100 , ALLOY5005	COLOR:	Custom Color Is Available For Your Choice
PACKAGES:	Strong Wooden Packages With Fumigation	SPECIFICATION:	1,570 X 5,800 X 4mm (0.30/0.30mm)
MOQ:	500 Square Meter	PAINT:	PVDF Paint, FEVE Paint
High Light:	aluminum composite cladding , composite cladding materials

Sparkling Black PVDF paint Aluminum Composite Material with 1,570 x 5,800 x 4mm (0.30/0.30mm)

Dimensions:
1,570 x 5,800 x 4mm (0.30/0.30mm)
Other specifications available, according to customers' requirements

Various standard colors and custom colors are available for your choice.

High impact resistance and good plasticity
Excellent weather adaptabilities, high intensity, and easy maintenance
Perfect sound insulation, thermal resistance and fire retardant capability
Strengthened impact resistance for constructions

Custom dimensions are available according to customers' requirements

Efficiently lightened burden for walls
Easy installation and shortened installation time

PVDF paint Aluminum Composite Material		Standard Index	Result	Conclusion
Color Appearance		Clean Surface without swell, scrath and aberration	Pass	Qualified
Dimension tolerance		Tolerance of Diagonal: ≤5mm	1mm	Qualified
Coating Thickness		≥25um	27u(av.30)	Qualified
Pencil Hardness		≥HB	H	Qualified
Toughness of Coating		≤2T	2T	Qualified
Impact Strength		50 Kg.cm Without paint off and crack	Pass	Qualified
Boiling Water Resistance		Boiling for 2h without change	Unchanged	Qualified
Acid Resistance		Immerse Surface with 5% HCI(v/v) for 24h without change	Unchanged	Qualified
Alkali Resistance		Immerse Surface with 5% NaOH(m/m) for 24h without change	Unchanged	Qualified
Solvent Resistance		Clean 100times without change	Bottom unrevealed	Qualified
Cleaning Resistance		≥10000 times without change	Unchanged	Qualified
Bend Strength		≥100Mpa	121Mpa	Qualified
Flexuous Modulus of Elasticity		≥2.0x10 4 Mpa	3.12x10 4 Mpa	Qualified
Cutting Strength		≥28.0 Mpa	32.0 Mpa	Qualified
180°Peel strength		≥7.0 N/mm	11.2N/mm	Qualified
Salt Haze Resistance(3000h)		Not less than Grade 2	Grade 1	Qualified
Artificial Weathering(4000h)	Artificial Resistance Aberration	≤4.0	1.25	Qualified
Artificial Weathering(4000h)	Aging Resistance out of Light	Not less than Grade 2	Grade 1	Qualified

Advantages:
Excellent Coating
High Peeling Strength
Lightweight and Rigidity
Color Uniformity and Durability
Excellent Insulation of Thermal Conductivity
Anti-toxicity and Safety
Workability

Specifications:
1. Standard:
Total Aluminum Composite Material thickness: 3mm, 4mm, 5mm, 6mm, 7mm, 8mm
AluminumThickness: 0.3mm, 0.35mm, 0.4mm, 0.45mm, 0.5mm
Width: 1220, 1250,1500,1550,2000mm (Special width is also available)
Length: standard length 2440mm,3050mm,3660mm, 4880mm ,5000mm or any length you need

(Notes: Optional items & customers colors are subject to the respective minimum quantity. )

Package:
Strong wooden case
