Blue Grey Zinc Composite Decorative Exterior Wall Panels With Moisture Resistant

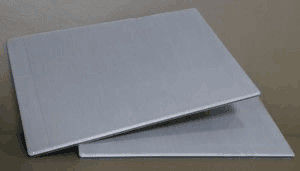

: Large Image : Blue Grey Zinc Composite Decorative Exterior Wall Panels With Moisture Resistant

Product Details:

Brand Name:	OEM
Certification:	ISO9001:2008
Model Number:	98042004mm (0.50/0.50mm

Payment & Shipping Terms:

Minimum Order Quantity:	negotiation
Price:	negotiation
Packaging Details:	Strong wooden packages
Delivery Time:	20 days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	50,000 + square meters + per month

Contact Now

Detailed Product Description

DIMENSION:	98042004mm (0.50/0.50mm	ALLOY:	ZINC
MOQ:	500 Square Meters For A Single Specification	PACKAGE:	Strong Wooden Packages With Fumigation For Your Choice
Color:	Blue Grey	Feature:	Moisture Resistant
High Light:	zinc wall cladding , zinc exterior cladding

Blue Grey color Zinc composite panel 980*4200*4mm (0.50/0.50mm) for exterior wall decoration

Dimension: 980*4200*4mm (0.50/0.50mm)

Zinc composite panel is a kind of new high grade construction, takes titanium zinc plate as its face plate, and aluminum as rear plate, high-pressure low density polythene (LDPE) as core materials. It combines Zinc plate characteristics (metallic feeling, self-healing, long life, good flexible) with the advantage of high strength, smooth and good, light weight, low price of composite panel. It can be used in the high-grade building walls, roof and interior decoration

Long service life.

tem	Item Description	Standard	Condition	Results
1	Density	ASTM D792-02	Absolute alcohol,23ºC	2.147g/cm3
2	Water resistance	ASTM D870-02	99ºC, 2H	No visual Changes
3	Thermal Expansion	ASTM D696	-	193.0μm/m·ºC
4	Heat deflection Temperature	ASTM D648-07	Heating rate:120ºC/h Load:1.82Mpa	94.8 ºC
5	Shear Resistance	ASTM D732-02	Speed:1.3mm/min	30.5Mpa
6	Shear Strength	ASTM D732-02	Speed:1.3mm/min	10528N
7	Tensile Strength	ASTM D638-03	Speed:500mm/min	43.8MPa
8	Flexural Strength	ASTM D790-07 method A	Speed:1.9mm/min Span:70mm	99.5MPa
9	Flexural Module	ASTM D790-07 method A	Speed:1.9mm/min Span:70mm	9390MPa
10	180oC Peel strength	ASTM D903-98	Seperation Rate: 152.4mm/min	64kg/mm

There is no need for Zinc Surface to make any painting and any other corrosion treatment, because it has a natural layer of dense oxide (Zinc carbonate ), and prevent further erosion.
With self-healing function, the Zinc panel can automatically heal without leaving traces after some time.
Even under the poor atmosphere condition, the service life for 1mm thick Zinc will be more than 200 years.

Top ZINC Thickness(mm)	Rear Aluminium Thickness(mm)	Total Thickness (mm)	Intensity Equal to Solid ZINC Thickness(mm)
0.5	0.5	4.0	2.5
0.7	0.7	4.0	3.0

Test Item	Unit	Performance Indicator
Flexural Strength	Mpa	≥60
Flexural Modulus	104 Mpa	≥2.0
Penetrating Resistance	KN	≥7.0
Shear Strength	Mpa	≥22.0
180°Peel off Strength	N/mm	≥7.0
Thermal Expansion	℃	≤ 4.00×10-5
Thermal Deformation Temperature	℃	≥95
Boiling water Resistance	No effect
Fire Resistance	GB8624 Class B
