Dull Finish Stainless Steel Composite Cladding Panels With Heat Insulation Function

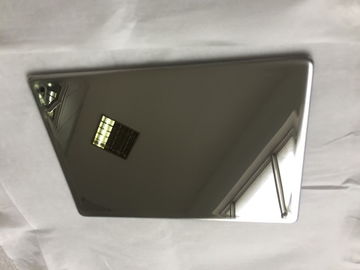

Large Image : Dull Finish Stainless Steel Composite Cladding Panels With Heat Insulation Function

Product Details:

Brand Name:	OEM
Certification:	ISO9001:2008
Model Number:	Width: 980mm, 1200mm, 1500mm, Length can be any length you need

Payment & Shipping Terms:

Minimum Order Quantity:	negotiation
Price:	negotiation
Packaging Details:	Strong wooden packages according to customer requirements
Delivery Time:	20 days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	30,000 + square meters + per month

Contact Now

Detailed Product Description

SIZE:	122024004mm (0.25/0.25mm)	MOQ:	300 Square Meters For A Single Color And A Single Width
TYPES:	SUS304, SUS316, SUS220M	PACKAGE:	Strong Wooden Packages
Core:	Mineral FR Material	Bottom:	Stainless Steel Skin Mill Finish (2B) For Standard, Other Finish Optional
High Light:	stainless steel wall panels , stainless steel laminate sheet

Dull finish Stainless steel composite panel 1220*2400*4mm (0.25/0.25mm) for wall decoration

Dimension:1220*2400*4mm (0.25/0.25mm)

1.Lower maintenance costs
2.Long-term preservation of the building structure
3.In winter: savings in heating cost
4.In summer: Savings in air-condition cost
5.Reduction of thermal expansion
6.Reduction in crack formation

Characteristics for Stainless Steel Composite Panel :
Test Item	Unit	Performance indicators
Test Item	Unit	3(4) x0.30/0.30mm	3(4) x0.20/0.20mm	3(4) x0.10/0.10mm
Roller Peel-off Strength	N·mm/mm	≥130	≥130	≥130
Unit Weight	km/m²	7.2±0.5 (8.0±0.5)	5.8±05 (6.5±0.5)	4.2±0.5 ( 5.0±0.5)
Flexural Strength	MPa	≥130	≥125	≥70
Flexural Modulus	104Mpa	≥3.5	≥3.2	≥2.5
Penetrating Resistance	kN	≥20	≥15	≥8.0
Shear Strength	MPa	≥68	≥58	≥30
Thermal Expansion	/℃	≤1.8×10-5	≤1.8x10-5	≤1.8x10-5
Thermal Deformation Temperature	℃	≥105	≥105	≥105
Boiling-water Resistance		No Effect	No Effect	No Effect
Weather Resistance		No Effect	No Effect	No Effect
Same Rigidity as Stainless Steel	mm	2.4	2.4	2.2
Fire Resistance	GB8642 CLASS B(ONLY FOR FR PANELS)

Total Thickness: 3mm-6mm standard thickness
Top Skin: Stainless Steel Skin,Hairline, Mirror, Embossed, Dull etc, in 0.3mm or 0.4mm
Core: Mineral FR material
Bottom: Stainless Steel Skin mill finish (2B) for standard, other finish optional

Size and Specifications 4mm FR core
Finish	Face Skin	Bottom Skin	Core	Standard Width	Optional Width	# of stainless
Hairline	0.4mm	0.4mm	FR	1200mm	1000mm, 1500mm	#304 #316 #220M
Mirror	0.3mm	0.3mm	FR	1200mm	N/A	#304 #316
Embossed	0.4mm	0.4mm	FR	1200mm	N/A	#304 #316
Dull Finish	0.3mm	0.3mm	FR	1200mm	N/A	#304 #316 #220M
