Easy Installation Aluminum Composite Material 3mm - 8mm Thickness High Intensity

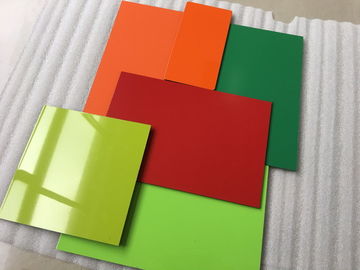

Large Image : Easy Installation Aluminum Composite Material 3mm - 8mm Thickness High Intensity

Product Details:

Brand Name:	OEM
Certification:	ISO9001:2008, ISO14001:2015
Model Number:	1,550 x 5,700 x 6mm (0.50/0.50mm)

Payment & Shipping Terms:

Minimum Order Quantity:	negotiation
Price:	negotiation
Packaging Details:	Strong wooden packages according to customer requirements
Delivery Time:	15 days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	250,000 + square meters + per month

Contact Now

Detailed Product Description

ALUMINUM ALLOY:	Alloy 3105, Alloy 1100, Alloy 3003, Alloy 5005	COLOR:	Custom Colors Are Available For Your Choice
PACKING:	Strong Wooden Packages	SIZE:	1,550 X 5,700 X 6mm (0.50/0.50mm)
MOQ:	500 Square Meter	PAINT:	Polyester, FEVE , PVDF
High Light:	aluminum composite cladding , composite cladding materials

Nano PVDF paint Aluminum Composite Material with 1,550 x 5,700 x 6mm (0.50/0.50mm) Green

Dimensions:
1,550 x 5,700 x 6mm (0.50/0.50mm)
Non-standard panels are available, Maximum width is 2,000mm

Items (PVDF ACP)		Standard Index	Result	Conclusion
Appearance		Clean Surface without swell, scrath and aberration	Pass	Qualified
Deviation of Dimension		Deviation of Diagonal: ≤5mm	1mm	Qualified
Thickness of Coating		≥25um	27u(av.30)	Qualified
Hardness of Pencil		≥HB	H	Qualified
Toughness of Coating		≤2T	2T	Qualified
Impact Strength		50 Kg.cm Without paint off and crack	Pass	Qualified
Boiling Water Resistance		Boiling for 2h without change	Unchanged	Qualified
Acid Resistance		Immerse Surface with 5% HCI(v/v) for 24h without change	Unchanged	Qualified
Alkali Resistance		Immerse Surface with 5% NaOH(m/m) for 24h without change	Unchanged	Qualified
Solvent Resistance		Clean 100times without change	Bottom unrevealed	Qualified
Cleaning Resistance		≥10000 times without change	Unchanged	Qualified
Bend Strength		≥100Mpa	121Mpa	Qualified
Flexuous Modulus of Elasticity		≥2.0x10 4 Mpa	3.12x10 4 Mpa	Qualified
Cutting Strength		≥28.0 Mpa	32.0 Mpa	Qualified
180°Peel strength		≥7.0 N/mm	11.2N/mm	Qualified
Salt Haze Resistance(3000h)		Not less than Grade 2	Grade 1	Qualified
Artificial Weathering(4000h)	Artificial Resistance Aberration	≤4.0	1.24	Qualified
Artificial Weathering(4000h)	Aging Resistance out of Light	Not less than Grade 2	Grade 1	Qualified

Advantages:
Excellent Coating
High Peeling Strength
Lightweight and Rigidity
Color Uniformity and Durability
Excellent Insulation of Thermal Conductivity
Anti-toxicity and Safety
Workability

Other specifications available, according to customers' requirements
3) Various colors available, according to customers' requirements
4) High impact resistance and good plasticity
5) Efficiently lightened burden for walls
6) Strengthened impact resistance for constructions
7) Great weather adaptabilities, high intensity, and easy maintenance
8) Perfect sound insulation, thermal resistance and fire retardant capability
9) Easy installation, apparently shortened installation time
10) Quality warranty:
A) 10-year guarantee for polyester aluminum composite panels

Specifications:
1. Standard:
Total Aluminum Composite Material thickness: 3mm, 4mm, 5mm, 6mm, 7mm, 8mm
AluminumThickness: 0.3mm, 0.35mm, 0.4mm, 0.45mm, 0.5mm

Length: 2440, 3050, 3660, 4880, 5000mm or any length up to your requirement
Width: 1220, 1250,1500,1550,2000mm (Special width is also available)

(Notes: Optional items & customers colors are subject to the respective minimum quantity. )

Package:
Strong wooden case
