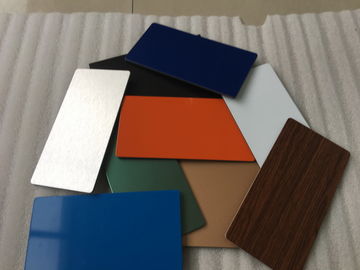

Easy Processing Aluminum Composite Material / ACM Metal Panel For Wall Cladding

Large Image : Easy Processing Aluminum Composite Material / ACM Metal Panel For Wall Cladding

Product Details:

Brand Name:	OEM
Certification:	ISO9001:2008, ISO14001:2015
Model Number:	2,000 x 4,000 x 3mm (0.30/0.30mm) f

Payment & Shipping Terms:

Minimum Order Quantity:	negotiation
Price:	negotiation
Packaging Details:	Strong wooden packages according to customer requirements
Delivery Time:	15 days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	250,000 + square meters + per month

Contact Now

Detailed Product Description

ALUMINUM ALLOY:	Alloy 3105, Alloy 1100, Alloy 3003, Alloy 5005	COLOR:	Custom Colors Are Available For Your Choice
PACKAGES:	Strong Wooden Packages	SIZE:	2,000 X 4,000 X 3mm (0.30/0.30mm) F
MOQ:	500 Square Meter	PAINT:	PVDF, FEVE
High Light:	aluminum composite cladding , acm building material

PVDF coating Aluminum Composite Material with 2,000 x 4,000 x 3mm (0.30/0.30mm) for wall cladding

Dimensions:
2,000 x 4,000 x 3mm (0.30/0.30mm)
Non-standard panels are available

2) Colors: 70 colors optional, new colors available up on requestsSilver, White, Champagne, Black, Dark Blue, Grey and so on.
3)Super peeling strength
4)Even coating, various colors
5)Impact resistant, light weight and easy to process
6)Outstanding weatherpoof and fireproof properties
7)Easy to maintain
8)Application: Indoor&outdoor wall, ceiling, vehicle, vessel and furniture decoration

1, Easy assembling with conventional&long service life

2, Excellent weather-resistance, high reigidity ,easy for maintenance

3, Super best workablity, fire-restistance, heat and sound insulation

4, High flexibility and impact-resistance,superior surface finishing and lightweight

5, Various colours are available to meet you needs

6, Competitive price ,excellent quality and quick delivery

7,Application : Exterior& Interior decoration,cabinet,ceilling,roof,wall cladding and so on

Items (PVDF ACP)		Standard Index	Result	Conclusion
Appearance		Clean Surface without swell, scrath and aberration	Pass	Qualified
Deviation of Dimension		Deviation of Diagonal: ≤5mm	1mm	Qualified
Thickness of Coating		≥25um	27u(av.30)	Qualified
Hardness of Pencil		≥HB	H	Qualified
Toughness of Coating		≤2T	2T	Qualified
Impact Strength		50 Kg.cm Without paint off and crack	Pass	Qualified
Boiling Water Resistance		Boiling for 2h without change	Unchanged	Qualified
Acid Resistance		Immerse Surface with 5% HCI(v/v) for 24h without change	Unchanged	Qualified
Alkali Resistance		Immerse Surface with 5% NaOH(m/m) for 24h without change	Unchanged	Qualified
Solvent Resistance		Clean 100times without change	Bottom unrevealed	Qualified
Cleaning Resistance		≥10000 times without change	Unchanged	Qualified
Bend Strength		≥100Mpa	121Mpa	Qualified
Flexuous Modulus of Elasticity		≥2.0x10 4 Mpa	3.12x10 4 Mpa	Qualified
Cutting Strength		≥28.0 Mpa	32.0 Mpa	Qualified
180°Peel strength		≥7.0 N/mm	11.2N/mm	Qualified
Salt Haze Resistance(3000h)		Not less than Grade 2	Grade 1	Qualified
Artificial Weathering(4000h)	Artificial Resistance Aberration	≤4.0	1.24	Qualified
Artificial Weathering(4000h)	Aging Resistance out of Light	Not less than Grade 2	Grade 1	Qualified

Advantages:
Excellent Coating
High Peeling Strength
Lightweight and Rigidity
Color Uniformity and Durability
Excellent Insulation of Thermal Conductivity
Anti-toxicity and Safety
Workability

(Notes: Optional items & customers colors are subject to the respective minimum quantity. )

Package:
Strong wooden case
