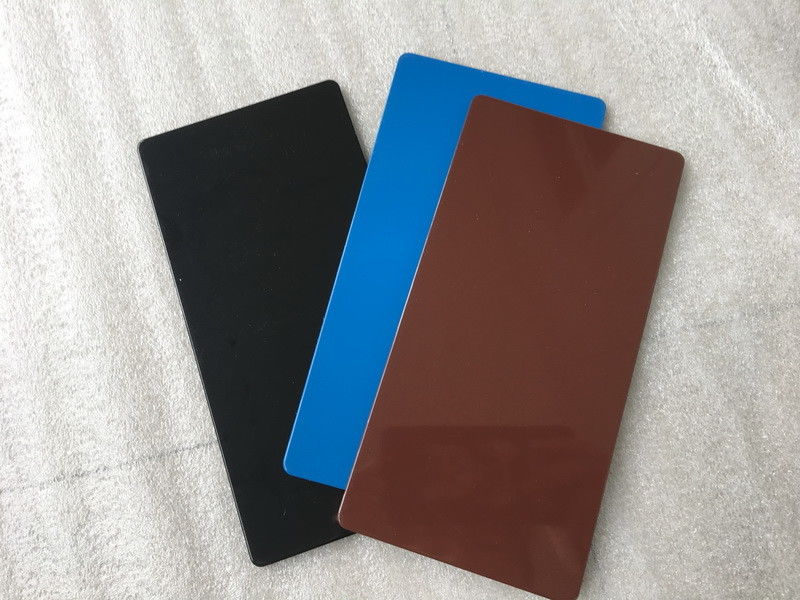

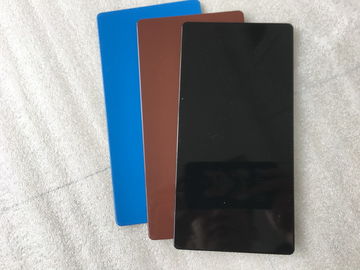

Fire Resistant Aluminum Sandwich Panel Easy Maintenance With Polyester Paint

Large Image : Fire Resistant Aluminum Sandwich Panel Easy Maintenance With Polyester Paint

Product Details:

Brand Name:	OEM
Certification:	ISO9001:2008 , ISO14001:2015
Model Number:	2000* 2500* 4mm (0.40/0.40mm)

Payment & Shipping Terms:

Minimum Order Quantity:	negotiation
Price:	negotiation
Packaging Details:	Strong wooden packages according to customer requirements
Delivery Time:	15 days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	250,000 + square meters + per month

Contact Now

Detailed Product Description

SPECIFICATION:	2000* 2500* 4mm (0.40/0.40mm)	COLORS:	Any Colors Are Available For Your Choice
PACKAGES:	Strong Wooden Packages For Your Choice	MOQ:	500 Square Meters For A Single Color And A Single Width
ALUMINUM ALLOY:	AA1100, AA3003, AA3105, AA5005	PAINT:	Polyester / Polyester
High Light:	aluminium sandwich sheet , insulated sandwich panels

2 meters Aluminum sandwich panel 2000* 2500* 4mm (0.40/0.40mm) with Polyester/ Polyester paint

Dimensions:
2000* 2500* 4mm (0.40/0.40mm)
Other specifications are available
Advantages:
Excellent Coatings
High Peeling Strength
Light weight and Rigidity
Color Uniformity and Durability
Excellent Insulation of Thermal Conductivity
Anti-toxicity and Safety
Workability

Items (POLYESTER ACP/ ACM)		Standard Index	Result	Conclusion
Appearance		Clean Surface without swell, scrath and aberration	Pass	Qualified
Deviation of Dimension		Deviation of Diagonal: ≤5mm	1mm	Qualified
Thickness of Coating		≥18um	19um	Qualified
Hardness of Pencil		≥HB	2H	Qualified
Toughness of Coating		≤2T	2T	Qualified
Impact Strength		30 Kg.cm Without paint off and crack	Pass	Qualified
Boiling Water Resistance		Boiling for 2h without change	Unchanged	Qualified
Acid Resistance		Immerse Surface with 2% HCI(v/v) for 24h without change	Unchanged	Qualified
Alkali Resistance		Immerse Surface with 2% NaOH(m/m) for 24h without change	Unchanged	Qualified
Solvent Resistance		Clean 200 times without change	Bottom unrevealed	Qualified
Cleaning Resistance		≥10000 times without change	Unchanged	Qualified
Bend Strength		≥100Mpa	121Mpa	Qualified
Flexuous Modulus of Elasticity		≥2.0x10 4 Mpa	3.12x10 4 Mpa	Qualified
Cutting Strength		≥28.0 Mpa	32.0 Mpa	Qualified
180°Peel strength		≥7.0 N/mm	11.2N/mm	Qualified
Salt Haze Resistance(3000h)		Not less than Grade 2	Grade 1	Qualified
Artificial Weathering(4000h)	Artificial Resistance Aberration	≤4.0	1.24	Qualified
Artificial Weathering(4000h)	Aging Resistance out of Light	Not less than Grade 2	Grade 1	Qualified

Specifications:
1. Standard:
Width: 1220, 1250,1500,1550,2000mm (Special width is also available)
Length: standard length 2440mm,2500mm,3660mm, 4880mm ,5000mm or any length you need

Other specifications available, according to customers' requirements
3) Various colors available, according to customers' requirements
4) High impact resistance and good plasticity
5) Efficiently lightened burden for walls
6) Strengthened impact resistance for constructions
7) Great weather adaptabilities, high intensity, and easy maintenance
8) Perfect sound insulation, thermal resistance and fire retardant capability
9) Easy installation, apparently shortened installation time
10) Quality warranty:
A) 20-year guarantee for PVDF aluminum composite panels
B) 10-year guarantee for polyester aluminum composite panels

(Notes: Optional items & customers colors are subject to the respective minimum quantity. )

Package:
Strong wooden case
