Fireproof White Aluminium Composite Sheet 5 * 1350 * 5000mm With 0.40mm Alu Thickness

Jiangyin Hongmao Decoration Material Co.,Ltd is just as the word : NOT FOR THE BIGGEST , BUT FOR THE BEST.

—— Mr James

I'm Online Chat Now

Fireproof White Aluminium Composite Sheet 5 * 1350 * 5000mm With 0.40mm Alu Thickness

China Fireproof White Aluminium Composite Sheet 5 * 1350 * 5000mm With 0.40mm Alu Thickness supplier
Fireproof White Aluminium Composite Sheet 5 * 1350 * 5000mm With 0.40mm Alu Thickness supplier Fireproof White Aluminium Composite Sheet 5 * 1350 * 5000mm With 0.40mm Alu Thickness supplier

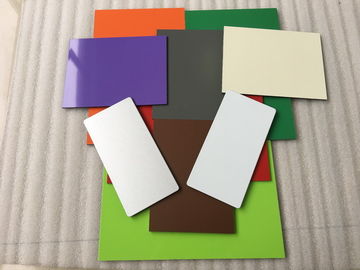

Large Image :  Fireproof White Aluminium Composite Sheet 5 * 1350 * 5000mm With 0.40mm Alu Thickness

Product Details:

Brand Name: OEM
Certification: ISO9001:2008 ISO14001:2015
Model Number: 5*1350* 4980mm (0.40/0.40mm)

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: wooden packages or bare loading, according to customer's requirement
Delivery Time: 15 days
Payment Terms: D/A, L/C, D/P, T/T, Western Union
Supply Ability: 250,000 + square meters + per month
Contact Now
Detailed Product Description
SPECIFICATION: 5*1350* 5000mm (0.40/0.40mm) COLOR: Any Colors Are Available For To You Choose
MOQ: 1000 Sqm For A Single Color And A Single Width Paint: PVDF Paint And FEVE Paint
PACKAGES: Strong Wooden Packages With Fumigation ALUMINUM ALLOY: Alloy 3105, Alloy 1100, Alloy 3003, Alloy 5005
High Light:

aluminum plastic composite sheet

,

aluminum coated plastic sheet

PVDF paint Aluminium Composite sheets 5*1350* 5000mm (0.40/0.40mm) with pearl white

Dimensions:
5*1350* 5000mm (0.40/0.40mm)



Standards:

Standard Length: 2440mm, 2500mm, 3000mm, 3050mm,3660mm, 4000mm, 4880mm ,5000mm or any length according to your requirement

Standard Width: 1220mm, 1250mm, 1500mm, 1550mm, 2000mm (Special width is also available)
Aluminum Composite Material Thickness: 3mm - 8mm
Aluminum Thickness: 0.30mm, 0.35mm, 0.40mm, 0.45mm, 0.50mm




Advantages:
Color Uniformity and Durability during the warranty years
Excellent Peeling Strength upto GB standard

Anti-toxicity and Safety
Workability in installation process

Excellent Coating and various colors
Lightweight and Rigidity
Excellent Insulation of Thermal Conductivity



PVDF / FEVE Paint Comparison
ITEM PVDF FEVE
Paint Thickness ≥ 25um ≥ 25um
Hardness of Pencil >F >2H
Coating temperature 232-249°C (15-10min ) 200-220°C (15-12min )
Solvent Resistance Clean 100times without change Clean 100times without change
Adhesion test 100% adhering 100% adhering
Salt Haze Resistance test 5% According to AAMA2605 standard According to AAMA2605 standard
Weather Resistance According to AAMA2605 standard According to AAMA2605 standard
Gloss Maintain According to AAMA2605 standard According to AAMA2605 standard
60°Mirror Gloss 15-35 15-60
Paint composition 70% PVDF Kynar 500 or Hylar 5000 100% Fluoropolymer (FEVE)
Cleaning Resistance ≥10000 times without change ≥10000 times without change
Acid Resistance Immerse Surface with 5% HCL(v/v) for 24h without change Immerse Surface with 5% NaOH(m/m) for 24h without change
Wear Resistance Good Good
Abrasion resistance over 40 over 50
Water sealing performance 38°Cx24 hours soaking 100% no bubble 100% no bubble
Color difference Installation technique affect more to the color difference Installation technique affect less to the color difference


Specifications:
1. Standard:
Total thickness: 4mm
Alu. Thickness: 0.5mm
Width: 1220, 1250,1500,1550,2000mm (Special width is also available) Maximum 2000mm
Length: standard length 2440mm,3050mm,3660mm, 5000mm or any length you need


Other specifications available, according to customers' requirements
3) Various colors available, according to customers' requirements
4) High impact resistance and good plasticity
5) Efficiently lightened burden for walls
6) Strengthened impact resistance for constructions
7) Great weather adaptabilities, high intensity, and easy maintenance
8) Perfect sound insulation, thermal resistance and fire retardant capability
9) Easy installation, apparently shortened installation time
10) Quality warranty:
A) 20-year guarantee for PVDF aluminum composite panels


(Notes: Optional items & customers colors are subject to the respective minimum quantity. )

Package:
Strong wooden case

Fireproof White Aluminium Composite Sheet 5 * 1350 * 5000mm With 0.40mm Alu ThicknessFireproof White Aluminium Composite Sheet 5 * 1350 * 5000mm With 0.40mm Alu Thickness
