Fireproof Zinc Wall Cladding Panel High Strength With Good Weather Resistance

: Large Image : Fireproof Zinc Wall Cladding Panel High Strength With Good Weather Resistance

Product Details:

Brand Name:	OEM
Certification:	ISO9001:2008
Model Number:	98022004mm (0.50/0.50mm)

Payment & Shipping Terms:

Minimum Order Quantity:	negotiation
Price:	negotiation
Packaging Details:	Strong wooden packages
Delivery Time:	20 days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	50,000 + square meters + per month

Contact Now

Detailed Product Description

DIMENSION:	98022004mm (0.50/0.50mm)	Zinc Thickness:	0.50mm,0.70mm
MOQ:	500 Square Meters For A Single Color And A Single Width	PACKAGE:	Strong Wooden Packages With Fumigation
Width:	980mm, 1240mm	Panel Thickness:	4mm, 5mm, 6mm
High Light:	zinc cladding panels , zinc exterior cladding

Special quality Zinc composite panel 980*2200*4mm (0.50/0.50mm) for wall cladding

Dimension: 980*2200*4mm (0.50/0.50mm)

Panel Thickness	4mm, 5mm, 6mm
Optional Core	fr core, Poly Ethlene, honeycomb aluminum
Width	980mm, 1240mm
Length	2440mm, 3000mm, 3660mm, 4000mm, 5800mm
Zinc	VMZINC

Top ZINC Thickness(mm)	Rear Aluminium Thickness(mm)	Total Thickness (mm)	Intensity Equal to Solid ZINC Thickness(mm)
0.5	0.5	4.0	2.5
0.7	0.7	4.0	3.0

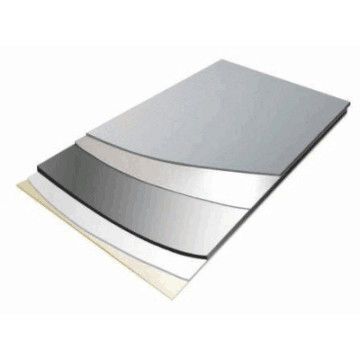

Zinc composite panel is a kind of new high grade construction, takes titanium zinc plate as its face plate, and aluminum as rear plate, high-pressure low density polythene (LDPE) as core materials. It combines Zinc plate characteristics (metallic feeling, self-healing, long life, good flexible) with the advantage of high strength, smooth and good, light weight, low price of composite panel. It can be used in the high-grade building walls, roof and interior decoration

Long service life manifested in :
There is no need for Zinc Surface to make any painting and any other corrosion treatment, because it has a natural layer of dense oxide (Zinc carbonate ), and prevent further erosion.
With self-healing function, the Zinc panel can automatically heal without leaving traces after some time.
Even under the poor atmosphere condition, the service life for 1mm thick Zinc will be more than 200 years.

Test Item	Unit	Performance Indicator
Flexural Strength	Mpa	≥60
Flexural Modulus	104 Mpa	≥2.0
Penetrating Resistance	KN	≥7.0
Shear Strength	Mpa	≥22.0
180°Peel off Strength	N/mm	≥7.0
Thermal Expansion	℃	≤ 4.00×10-5
Thermal Deformation Temperature	℃	≥95
Boiling water Resistance	No effect
Fire Resistance	GB8624 Class B
