Product Details:
Payment & Shipping Terms:
|
ALUMINUM ALLOY: | AA1100, AA3003, AA3105 | COLOR: | Any Color Is Available |
---|---|---|---|
PACKAGES: | Strong Wooden Packages | SIZE: | Width From 900mm-2000mm, Length Can Be Any Length You Need |
MOQ: | 500 Square Meter | PAINT: | Polyester, FEVE , PVDF |
High Light: | aluminum composite cladding,composite cladding materials |

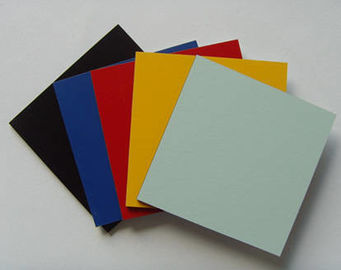

Polyester paint Aluminum Composite Material 1500 * 3000 * 4mm with Glossy white color
Dimensions:
1500 * 3000 * 4mm
Other specifications available, according to customers' requirements
Package:
Strong wooden cases with fumigation or in Bulk

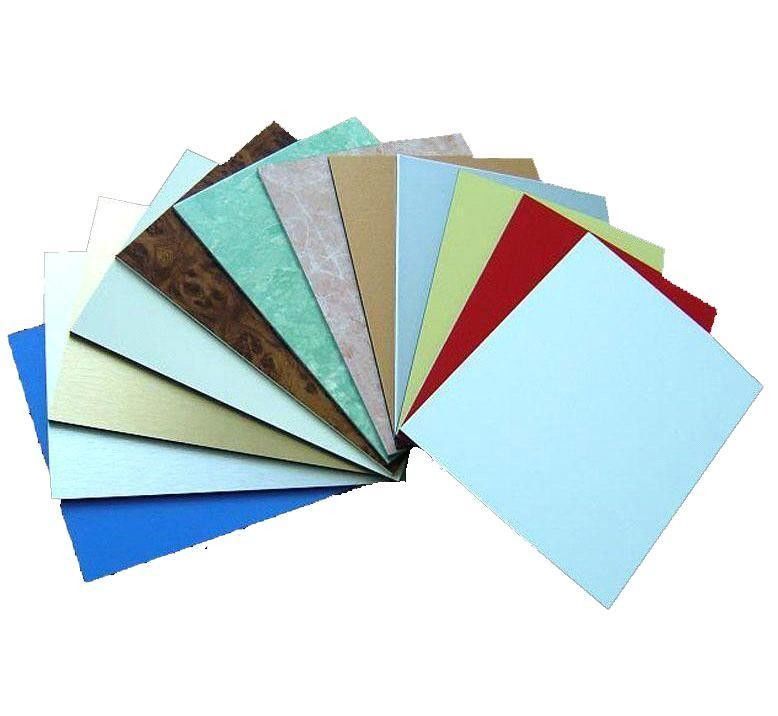

3) Various colors available, according to customers' requirements
4) High impact resistance and good plasticity
5) Efficiently lightened burden for walls
6) Strengthened impact resistance for constructions
7) Great weather adaptabilities, high intensity, and easy maintenance
8) Perfect sound insulation, thermal resistance and fire retardant capability
9) Easy installation, apparently shortened installation time
10) Quality warranty:
A) 10-year guarantee for polyester aluminum composite panels
(Notes: Optional items & customers colors are subject to the respective minimum quantity. )
Items (POLYESTER ACP) | Standard Index | Result | Conclusion | |
Appearance | Clean Surface without swell, scrath and aberration | Pass | Qualified | |
Deviation of Dimension | Deviation of Diagonal: ≤5mm | 1mm | Qualified | |
Thickness of Coating | ≥18um | 19um | Qualified | |
Hardness of Pencil | ≥HB | 2H | Qualified | |
Toughness of Coating | ≤2T | 2T | Qualified | |
Impact Strength | 30 Kg.cm Without paint off and crack | Pass | Qualified | |
Boiling Water Resistance | Boiling for 2h without change | Unchanged | Qualified | |
Acid Resistance | Immerse Surface with 2% HCI(v/v) for 24h without change | Unchanged | Qualified | |
Alkali Resistance | Immerse Surface with 2% NaOH(m/m) for 24h without change | Unchanged | Qualified | |
Solvent Resistance | Clean 200 times without change | Bottom unrevealed | Qualified | |
Cleaning Resistance | ≥10000 times without change | Unchanged | Qualified | |
Bend Strength | ≥100Mpa | 121Mpa | Qualified | |
Flexuous Modulus of Elasticity | ≥2.0x10 4 Mpa | 3.12x10 4 Mpa | Qualified | |
Cutting Strength | ≥28.0 Mpa | 32.0 Mpa | Qualified | |
180°Peel strength | ≥7.0 N/mm | 11.2N/mm | Qualified | |
Salt Haze Resistance(3000h) | Not less than Grade 2 | Grade 1 | Qualified | |
Artificial Weathering(4000h) | Artificial Resistance Aberration | ≤4.0 | 1.24 | Qualified |
Aging Resistance out of Light | Not less than Grade 2 | Grade 1 | Qualified |
Specifications:
1. Standard:
Total thickness: 3mm, 4mm
Alu. Thickness: 0.21mm,0.30mm
Width: 1220, 1250,1500,1550,2000mm (Special width is also available)
Length: standard length 2440mm,3050mm,3660mm, 4880mm ,5000mm or any length you need
Option:
Polyester paint
Total thickness:2mm, 3mm, 4mm, 5mm, 6mm
Alu. Thickness: 0.1mm, 0.12mm, 0.15mm, 0.18mm, 0.21mm, 0.25mm, 0.3mm, 0.35mm, 0.4mm, 0.45mm, 0.5mm
Advantages:
Excellent Coating
High Peeling Strength
Lightweight and Rigidity
Color Uniformity and Durability
Excellent Insulation of Thermal Conductivity
Anti-toxicity and Safety
Workability
