Jiangyin Hongmao Decoration Material Co.,Ltd is just as the word ： NOT FOR THE BIGGEST , BUT FOR THE BEST.

—— Mr James

Minimum Order Quantity:	negotiation
Price:	negotiation
Packaging Details:	Strong wooden packages according to customer requirements
Delivery Time:	20 days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	30,000 + square meters + per month

Contact Now

Detailed Product Description

SPECIFICATION:	120036604mm (0.25/0.25mm)	MOQ:	300 Square Meters For A Single Color And A Single Width
TYPES:	SUS304, SUS316	PACKAGE:	Wooden Packages With Fumigation For Your Choice
Function:	Fireproofing, Anti-static	Aluminum Thickness:	0.25/0.25mm
High Light:	stainless steel wall panels , stainless steel laminate sheet

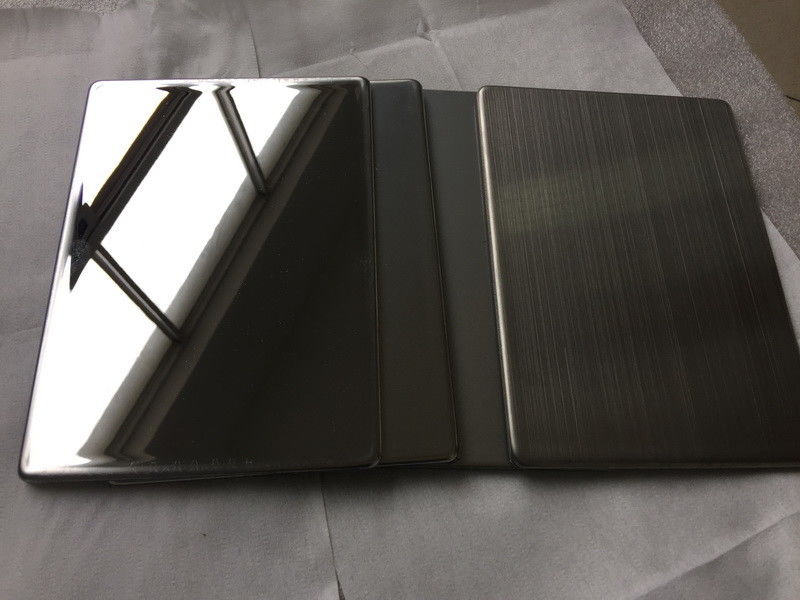

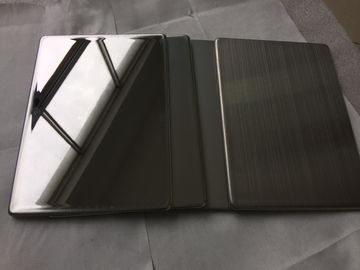

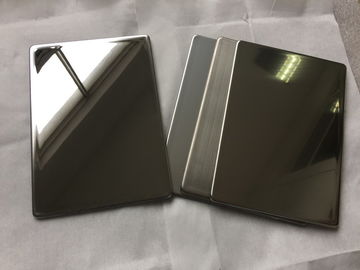

SUS304 Stainless steel composite panel 1200*3660*4mm (0.25/0.25mm) for wall cladding

Dimension: 1200*3660*4mm (0.25/0.25mm)

Finishes: Dull finish, Polished finish, Brush finish, Embossed finish

Surface Finishing: Mirror Surface
Aluminum Thickness: 0.40/0.40mm
Usage: External Wall, Curtain Wall, Interior, Escalator and Elevator Cladding, Curtain Walls
Structure: Sandwich Composite Panel
Grade of Stainless Steel: 304, 316, 220m
Skin Thickness: 0.3mm, 0.4mm, 0.5mm
Trademark: ALUONTOP OR CUSTOM BRAND
Specification: Exterior Facade Panel
HS Code: 76061190

Characteristics for Stainless Steel Composite Panel (SSCP):
Testing Item	Unit	Performance indicators
Testing Item	Unit	3(4) x0.30/0.30mm	3(4) x0.20/0.20mm	3(4) x0.12/0.12mm
Roller Peel-off Strength	N·mm/mm	≥130	≥130	≥130
Unit Weight	km/m²	7.0±0.5 (8.0±0.5)	5.6±05 (6.5±0.5)	4.1±0.5 ( 5.0±0.5)
Flexural Strength	MPa	≥130	≥125	≥70
Flexural Modulus	104Mpa	≥3.5	≥3.2	≥2.5
Penetrating Resistance	kN	≥20	≥15	≥8.0
Shearing Strength	MPa	≥68	≥58	≥30
Thermal Expansion	/℃	≤1.8×10-5	≤1.8x10-5	≤1.8x10-5
Thermal Deformation Temperature	℃	≥105	≥105	≥105
Boiling-water Resistance		No Effect	No Effect	No Effect
Weather Resistance		No Effect	No Effect	No Effect
Same Rigidity as Stainless Steel	mm	2.4	2.4	2.1
Fire Resistance	GB8642 CLASS B(ONLY FOR FR PANELS)

Total Thickness: 3mm-6mm standard, up to 20mm custom thickness are available
Top Skin: Stainless Steel Skin (Hairline, Mirror, Embossed, Dull etc) in 0.3mm or 0.4mm
Core: Mineral FR material
Bottom: Stainless Steel Skin mill finish (2B) for standard, other finish optional

Size and Specifications 4mm FR core
Finish	Face Skin	Bottom Skin	Core	Standard Width	Optional Width	# of stainless
Hairline	0.4mm	0.4mm	FR	1200mm	1000mm, 1500mm	#304 #316 #220M
Mirror	0.3mm	0.3mm	FR	1200mm	N/A	#304 #316
Embossed	0.4mm	0.4mm	FR	1200mm	N/A	#304 #316
Dull Finish	0.3mm	0.3mm	FR	1200mm	N/A	#304 #316 #220M
