Waterproof Aluminum Composite Material , External Insulated Cladding Panels

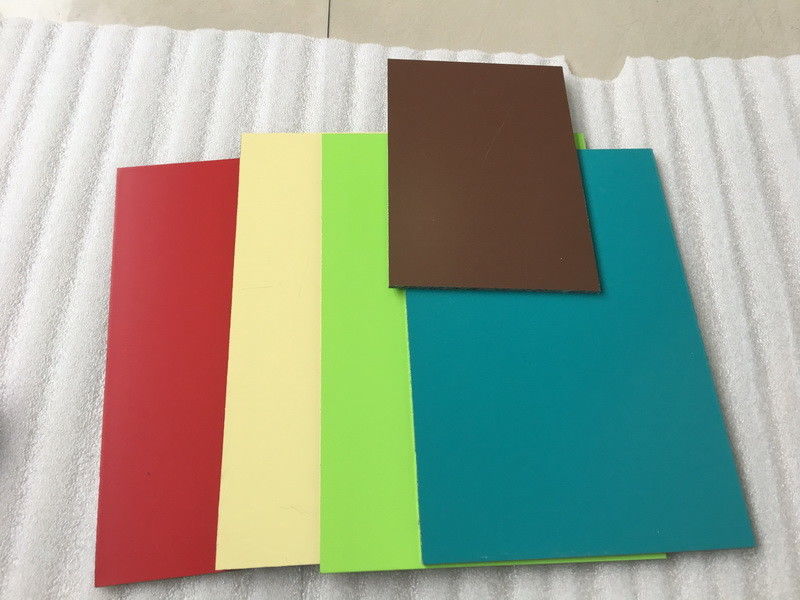

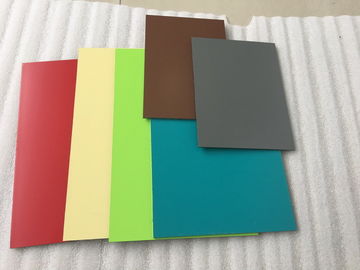

Large Image : Waterproof Aluminum Composite Material , External Insulated Cladding Panels

Product Details:

Brand Name:	OEM
Certification:	ISO9001:2008, ISO14001:2015
Model Number:	1,550 x 5,000 x 4mm (0.50/0.50mm)

Payment & Shipping Terms:

Minimum Order Quantity:	negotiation
Price:	negotiation
Packaging Details:	Strong wooden packages according to customer requirements
Delivery Time:	15 days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	250,000 + square meters + per month

Contact Now

Detailed Product Description

ALUMINUM ALLOY:	AA3105, AA1100, AA3003, AA5005	COLOR:	Any Color Is Available For You To Choose
PACKAGES:	Strong Wooden Packages For Your Choice	SIZE:	1,550 X 5,000 X 4mm (0.50/0.50mm)
MOQ:	500 Square Meter	PAINT:	PVDF Paint, FEVE Paint
High Light:	aluminum composite cladding , composite cladding materials

Nano PVDF paint Aluminum Composite Material with 1,550 x 5,000 x 4mm (0.50/0.50mm) Champagne Silver

Dimensions: 1,550 x 5,000 x 4mm (0.50/0.50mm)
Non-standard panels are available, Maximum width is 2,000mm

Advantages:
Excellent Coating

Lightweight and Rigidity
Super peeling strength
Even coating, various colors
Impact resistant, light weight and easy to process
Outstanding weatherpoof and fireproof properties
Easy to maintain
Color Uniformity and Durability
Excellent Insulation of Thermal Conductivity
Anti-toxicity and Safety
Workability

Specifications:
Aluminum Composite Material Thickness: 3mm, 4mm, 5mm, 6mm, 7mm, 8mm
Aluminum Thickness: 0.30mm, 0.35mm, 0.40mm, 0.45mm, 0.50mm
Standard Width: 1220, 1250,1500,1550,2000mm (Special width is also available)
Standard Length: 2440mm, 2500mm, 3000mm, 3050mm,3660mm, 4000mm, 4880mm ,5000mm or any length you need

Other specifications available, according to customers' requirements
3) Various colors available, according to customers' requirements
4) High impact resistance and good plasticity
5) Efficiently lightened burden for walls
6) Strengthened impact resistance for constructions
7) Great weather adaptabilities, high intensity, and easy maintenance
8) Perfect sound insulation, thermal resistance and fire retardant capability
9) Easy installation, apparently shortened installation time
10) Quality warranty:
A) 10-year guarantee for polyester aluminum composite panels

Items (PVDF ACP)		Standard Index	Result	Conclusion
Appearance		Clean Surface without swell, scrath and aberration	Pass	Qualified
Deviation of Dimension		Deviation of Diagonal: ≤5mm	1mm	Qualified
Thickness of Coating		≥25um	27u(av.30)	Qualified
Hardness of Pencil		≥HB	H	Qualified
Toughness of Coating		≤2T	2T	Qualified
Impact Strength		50 Kg.cm Without paint off and crack	Pass	Qualified
Boiling Water Resistance		Boiling for 2h without change	Unchanged	Qualified
Acid Resistance		Immerse Surface with 5% HCI(v/v) for 24h without change	Unchanged	Qualified
Alkali Resistance		Immerse Surface with 5% NaOH(m/m) for 24h without change	Unchanged	Qualified
Solvent Resistance		Clean 100times without change	Bottom unrevealed	Qualified
Cleaning Resistance		≥10000 times without change	Unchanged	Qualified
Bend Strength		≥100Mpa	121Mpa	Qualified
Flexuous Modulus of Elasticity		≥2.0x10 4 Mpa	3.12x10 4 Mpa	Qualified
Cutting Strength		≥28.0 Mpa	32.0 Mpa	Qualified
180°Peel strength		≥7.0 N/mm	11.2N/mm	Qualified
Salt Haze Resistance(3000h)		Not less than Grade 2	Grade 1	Qualified
Artificial Weathering(4000h)	Artificial Resistance Aberration	≤4.0	1.24	Qualified
Artificial Weathering(4000h)	Aging Resistance out of Light	Not less than Grade 2	Grade 1	Qualified
