Product Details:
Payment & Shipping Terms:
|
DIMENSIONS: | 1270*4980*4mm,0.30/0.30mm | ALUMINUM ALLOY: | Alloy 3105, Alloy 5005 |
---|---|---|---|
COLORS: | Custom Colors Are Available For You | MOQ: | 600 Square Meters For A Single Color And Single Width |
PACKING: | Strong Wooden Packages With Fumigation For You | PAINT: | PVDF Paint, FEVE Paint |
High Light: | lightweight wall cladding materials,interior wall covering panels |

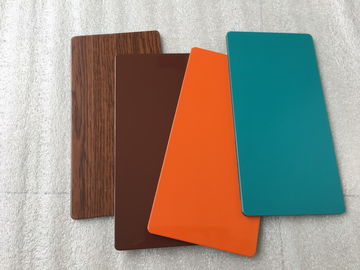

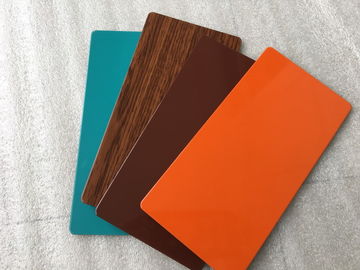

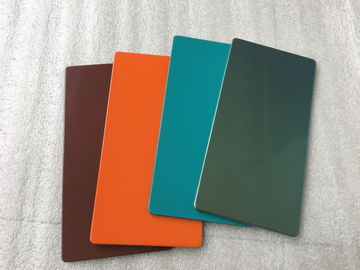

FR core Wall cladding panels with size1270*4980*4mm,0.30/0.30mm
Dimensions:1270*4980*4mm,0.30/0.30mm
Fire resistant for A2 grade, and Fire retardant for B1 grade
Excellent Coating
Excellent Insulation of Thermal Conductivity
Anti-toxicity and Safety
Workability
High Peeling Strength
Lightweight and Rigidity
Color Uniformity and Durability
Other specifications available, according to customers' requirements
Specifications:
1. Standard:
Width: 1220, 1250,1500,1550,2000mm (Special width is also available upto your demand)
Length: standard length 2440mm,2500mm,3660mm, 4880mm ,5000mm or any length you need
Option:
PVDF paint
Panel thickness:2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm
Alu. Thickness: 0.3mm, 0.35mm, 0.4mm, 0.45mm, 0.5mm ,0.60mm
FR core Wall cladding panels | Standard Index | Result | Conclusion | |
Surface Appearance | Clean Surface without swell, scrath and aberration | Pass | Qualified | |
Deviation of Dimension | Deviation of Diagonal: ≤5mm | 1mm | Qualified | |
Thickness of Coating | ≥25um | 27u(av.30) | Qualified | |
Hardness of Pencil | ≥HB | H | Qualified | |
Toughness of Coating | ≤2T | 2T | Qualified | |
Impact Strength | 50 Kg.cm Without paint off and crack | Pass | Qualified | |
Boiling Water Resistance | Boiling for 2h without change | Unchanged | Qualified | |
Acid Resistance | Immerse Surface with 5% HCI(v/v) for 24h without change | Unchanged | Qualified | |
Alkali Resistance | Immerse Surface with 5% NaOH(m/m) for 24h without change | Unchanged | Qualified | |
Solvent Resistance | Clean 100times without change | Bottom unrevealed | Qualified | |
Cleaning Resistance | ≥10000 times without change | Unchanged | Qualified | |
Bend Strength | ≥100Mpa | 121Mpa | Qualified | |
Flexuous Modulus of Elasticity | ≥2.0x10 4 Mpa | 3.12x10 4 Mpa | Qualified | |
Cutting Strength | ≥28.0 Mpa | 32.0 Mpa | Qualified | |
180°Peel strength | ≥7.0 N/mm | 11.2N/mm | Qualified | |
Salt Haze Resistance(3000h) | Not less than Grade 2 | Grade 1 | Qualified | |
Artificial Weathering(4000h) | Artificial Resistance Aberration | ≤4.0 | 1.24 | Qualified |
Aging Resistance out of Light | Not less than Grade 2 | Grade 1 | Qualified |
Other specifications available, according to customers' requirements
3) Various colors available, according to customers' requirements
4) High impact resistance and good plasticity
5) Efficiently lightened burden for walls
6) Strengthened impact resistance for constructions
7) Great weather adaptabilities, high intensity, and easy maintenance
8) Perfect sound insulation, thermal resistance and fire retardant capability
9) Easy installation, apparently shortened installation time
10) Quality warranty:
A) 20-year guarantee for PVDF aluminum composite panels
B) 10-year guarantee for polyester aluminum composite panels
(Notes: Optional items & customers colors are subject to the respective minimum quantity. )
Package:
Strong wooden case
