High Rigidity Decorative Aluminum Wall Panels , Aluminium Composite Plate

Jiangyin Hongmao Decoration Material Co.,Ltd is just as the word : NOT FOR THE BIGGEST , BUT FOR THE BEST.

—— Mr James

I'm Online Chat Now

High Rigidity Decorative Aluminum Wall Panels , Aluminium Composite Plate

China High Rigidity Decorative Aluminum Wall Panels , Aluminium Composite Plate  supplier
High Rigidity Decorative Aluminum Wall Panels , Aluminium Composite Plate  supplier High Rigidity Decorative Aluminum Wall Panels , Aluminium Composite Plate  supplier

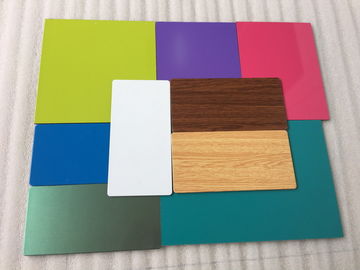

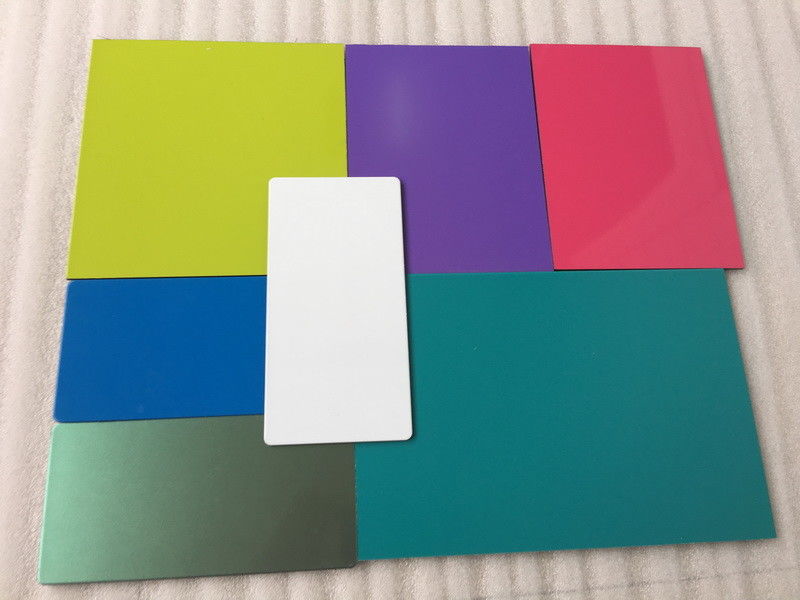

Large Image :  High Rigidity Decorative Aluminum Wall Panels , Aluminium Composite Plate

Product Details:

Brand Name: OEM
Certification: ISO9001:2008 ISO14001:2015
Model Number: 7* 1550 * 5700mm (0.40/0.40) mm

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: wooden packages or bare loading, according to customer's requirement
Delivery Time: 15 days
Payment Terms: D/A, L/C, D/P, T/T, Western Union
Supply Ability: 250,000 + square meters + per month
Contact Now
Detailed Product Description
ALUMINUM ALLOY: AA1100, AA3003, AA5005, AA3105 COLORS: Custom Colors Are Available For You
PACKAGE: Strong Wooden Packages With Fumigation For Your Choice SIZE: 7* 1550 * 5700mm (0.40/0.40) Mm
Paint: FEVE , PVDF ,POLYESTER MOQ: 500 Square Meters For A Single Color And A Single Width
High Light:

aluminium composite plate

,

pvdf coating aluminium composite panel

Pearl Black color PVDF Aluminum Composite Panel 7* 1550 * 5700mm (0.40/0.40) mm with 3 coats

Dimensions:
7* 1550 * 5700mm (0.40/0.40)
Non-standard width are available



Features

1 well weather-resistance, high reigidity ,easy for maintenance

2, Easy assembling with conventional&long service life

3, Good workablity ,fire-restistance,heat&sound insulation;

4, High flexibility and impact-resistance,superior surface finishing,lightweight

5, Various colours are available to meet you needs

6 Competitive price ,excellent quality and quick delivery

7, Application : Exterior& Interior decoration,cabinet,ceilling,roof,wall caldding and so on



PVDF / FEVE Paint with Comparison
ITEM PVDF FEVE
Paint Thickness ≥ 25um ≥ 25um
Hardness of Pencil >F >2H
Coating temperature 232-249°C (15-10min ) 200-220°C (15-12min )
Solvent Resistance Clean 100times without change Clean 100times without change
Adhesion test 100% adhering 100% adhering
Salt Haze Resistance test 5% According to AAMA2605 standard According to AAMA2605 standard
Weather Resistance According to AAMA2605 standard According to AAMA2605 standard
Gloss Maintain According to AAMA2605 standard According to AAMA2605 standard
60°Mirror Gloss 15-35 15-60
Paint composition 70% PVDF Kynar 500 or Hylar 5000 100% Fluoropolymer (FEVE)
Cleaning Resistance ≥10000 times without change ≥10000 times without change
Acid Resistance Immerse Surface with 5% HCL(v/v) for 24h without change Immerse Surface with 5% NaOH(m/m) for 24h without change
Wear Resistance Good Good
Abrasion resistance over 40 over 50
Water sealing performance 38°Cx24 hours soaking 100% no bubble 100% no bubble
Color difference Installation technique affect more to the color difference Installation technique affect less to the color difference


Specifications:
1. Standard:
Length: standard length 2000mm, 2440mm,3000mm,3660mm, 4880mm or any length you like
Width: 1250mm, 1350mm,1500mm,1550,2000mm (Special width is also available) Maximum 2000mm

Option:
PVDF paint
Total thickness: 2mm - 8mm or custom thickness upto your demand
Alu. Thickness: 0.3mm, 0.35mm, 0.4mm, 0.45mm, 0.5mm ,0.60mm and so on

Other specifications available, according to customers' requirements
3) Various colors available, according to customers' requirements
4) High impact resistance and good plasticity
5) Efficiently lightened burden for walls
6) Strengthened impact resistance for constructions
7) Great weather adaptabilities, high intensity, and easy maintenance
8) Perfect sound insulation, thermal resistance and fire retardant capability
9) Easy installation, apparently shortened installation time
10) Quality warranty:
A) 20-year guarantee for PVDF aluminum composite panels


(Notes: Optional items & customers colors are subject to the respective minimum quantity. )

Package:
Strong wooden case
