Smooth Surface PVDF Aluminum Composite Panel 5500mm Length With 0.40mm Alu Thickness

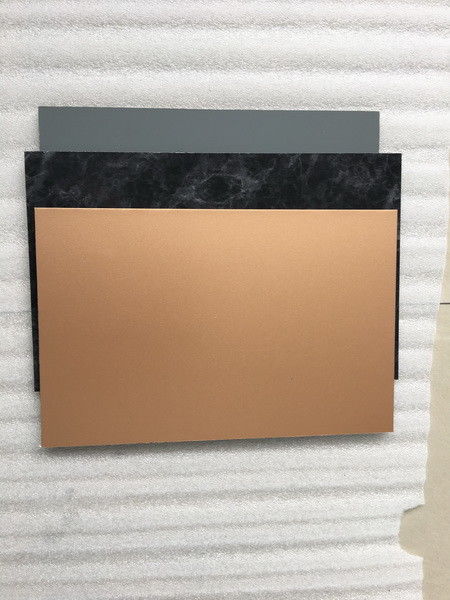

Large Image : Smooth Surface PVDF Aluminum Composite Panel 5500mm Length With 0.40mm Alu Thickness

Product Details:

Brand Name:	OEM
Certification:	ISO9001:2008 ISO14001:2015
Model Number:	7* 1550 * 5500mm (0.40/0.40) mm

Payment & Shipping Terms:

Minimum Order Quantity:	negotiation
Price:	negotiation
Packaging Details:	wooden packages or bare loading, according to customer's requirement
Delivery Time:	15 days
Payment Terms:	D/A, L/C, D/P, T/T, Western Union
Supply Ability:	250,000 + square meters + per month

Contact Now

Detailed Product Description

COLORS:	Any Colors Are Available For Your Choice	PACKAGE:	Strong Wooden Packages With Fumigation For Your Choice
SPECIFICATIONS:	7* 1550 * 5500mm (0.40/0.40) Mm	MOQ:	500 Sqm For A Single Color And A Single Width
Paint:	FEVE , PVDF ,POLYESTER	ALUMINUM ALLOY:	AA1100, AA3003, AA3105, AA5005
High Light:	aluminium composite plate , pvdf coating aluminium composite panel

Spectra PVDF Aluminum Composite Panel 7* 1550 * 5500mm (0.40/0.40mm) with 3 coats

Dimensions:
7* 1550 * 5500mm (0.40/0.40mm)

A. Exterior wall-cladding

B. Interior wall decoration

C. Wallboard,ceiling,partition

D. Billboard,exhibition and notice board

PVDF / FEVE Paint by Comparison
ITEM	PVDF	FEVE
Paint Thickness	≥ 25um	≥ 25um
Hardness of Pencil	>F	>2H
Coating temperature	232-249°C (15-10min )	200-220°C (15-12min )
Solvent Resistance	Clean 100times without change	Clean 100times without change
Adhesion test	100% adhering	100% adhering
Salt Haze Resistance test 5%	According to AAMA2605 standard	According to AAMA2605 standard
Weather Resistance	According to AAMA2605 standard	According to AAMA2605 standard
Gloss Maintain	According to AAMA2605 standard	According to AAMA2605 standard
60°Mirror Gloss	15-35	15-60
Paint composition	70% PVDF Kynar 500 or Hylar 5000	100% Fluoropolymer (FEVE)
Cleaning Resistance	≥10000 times without change	≥10000 times without change
Acid Resistance	Immerse Surface with 5% HCL(v/v) for 24h without change	Immerse Surface with 5% NaOH(m/m) for 24h without change
Wear Resistance	Good	Good
Abrasion resistance	over 40	over 50
Water sealing performance 38°Cx24 hours soaking	100% no bubble	100% no bubble
Color difference	Installation technique affect more to the color difference	Installation technique affect less to the color difference

Specifications:

Colors: 70 colors optional, new colors available up on requests
Silver, White,Champagne,Black,Dark Blue,Grey and so on
Wooden, Granite, Marble,Brush,Mirror

Building Material
3)Super peeling strength
4)Even coating, various colors
5)Impact resistant, light weight and easy to process
6)Outstanding weatherpoof and fireproof properties
7)Easy to maintain
8)Application: Indoor&outdoor wall, ceiling, vehicle, vessel and furniture decoration

Other specifications available, according to customers' requirements
3) Various colors available, according to customers' requirements
4) High impact resistance and good plasticity
5) Efficiently lightened burden for walls
6) Strengthened impact resistance for constructions
7) Great weather adaptabilities, high intensity, and easy maintenance
8) Perfect sound insulation, thermal resistance and fire retardant capability
9) Easy installation, apparently shortened installation time
10) Quality warranty:
A) 20 years warranty for PVDF paint aluminum composite panels

(Notes: Optional items & customers colors are subject to the respective minimum quantity. )

Package:
Strong wooden case
