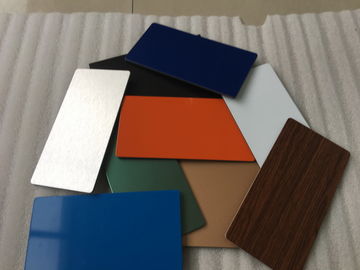

Easy Processing Aluminum Composite Material / ACM Metal Panel For Wall Cladding

Jiangyin Hongmao Decoration Material Co.,Ltd is just as the word : NOT FOR THE BIGGEST , BUT FOR THE BEST.

—— Mr James

I'm Online Chat Now

Easy Processing Aluminum Composite Material / ACM Metal Panel For Wall Cladding

China Easy Processing Aluminum Composite Material / ACM Metal Panel For Wall Cladding supplier
Easy Processing Aluminum Composite Material / ACM Metal Panel For Wall Cladding supplier Easy Processing Aluminum Composite Material / ACM Metal Panel For Wall Cladding supplier

Large Image :  Easy Processing Aluminum Composite Material / ACM Metal Panel For Wall Cladding

Product Details:

Brand Name: OEM
Certification: ISO9001:2008, ISO14001:2015
Model Number: 2,000 x 4,000 x 3mm (0.30/0.30mm) f

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Strong wooden packages according to customer requirements
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 250,000 + square meters + per month
Contact Now
Detailed Product Description
ALUMINUM ALLOY: Alloy 3105, Alloy 1100, Alloy 3003, Alloy 5005 COLOR: Custom Colors Are Available For Your Choice
PACKAGES: Strong Wooden Packages SIZE: 2,000 X 4,000 X 3mm (0.30/0.30mm) F
MOQ: 500 Square Meter PAINT: PVDF, FEVE
High Light:

aluminum composite cladding

,

acm building material

PVDF coating Aluminum Composite Material with 2,000 x 4,000 x 3mm (0.30/0.30mm) for wall cladding

Dimensions:
2,000 x 4,000 x 3mm (0.30/0.30mm)
Non-standard panels are available

2) Colors: 70 colors optional, new colors available up on requestsSilver, White, Champagne, Black, Dark Blue, Grey and so on.
3)Super peeling strength
4)Even coating, various colors
5)Impact resistant, light weight and easy to process
6)Outstanding weatherpoof and fireproof properties
7)Easy to maintain
8)Application: Indoor&outdoor wall, ceiling, vehicle, vessel and furniture decoration



1, Easy assembling with conventional&long service life

2, Excellent weather-resistance, high reigidity ,easy for maintenance

3, Super best workablity, fire-restistance, heat and sound insulation

4, High flexibility and impact-resistance,superior surface finishing and lightweight

5, Various colours are available to meet you needs

6, Competitive price ,excellent quality and quick delivery

7,Application : Exterior& Interior decoration,cabinet,ceilling,roof,wall cladding and so on





Items (PVDF ACP) Standard Index Result Conclusion
Appearance Clean Surface without swell, scrath and aberration Pass Qualified
Deviation of Dimension Deviation of Diagonal: ≤5mm 1mm Qualified
Thickness of Coating ≥25um 27u(av.30) Qualified
Hardness of Pencil ≥HB H Qualified
Toughness of Coating ≤2T 2T Qualified
Impact Strength 50 Kg.cm Without paint off and crack Pass Qualified
Boiling Water Resistance Boiling for 2h without change Unchanged Qualified
Acid Resistance Immerse Surface with 5% HCI(v/v) for 24h without change Unchanged Qualified
Alkali Resistance Immerse Surface with 5% NaOH(m/m) for 24h without change Unchanged Qualified
Solvent Resistance Clean 100times without change Bottom unrevealed Qualified
Cleaning Resistance ≥10000 times without change Unchanged Qualified
Bend Strength ≥100Mpa 121Mpa Qualified
Flexuous Modulus of Elasticity ≥2.0x10 4 Mpa 3.12x10 4 Mpa Qualified
Cutting Strength ≥28.0 Mpa 32.0 Mpa Qualified
180°Peel strength ≥7.0 N/mm 11.2N/mm Qualified
Salt Haze Resistance(3000h) Not less than Grade 2 Grade 1 Qualified
Artificial Weathering(4000h) Artificial Resistance Aberration ≤4.0 1.24 Qualified
Aging Resistance out of Light Not less than Grade 2 Grade 1 Qualified

Advantages:
Excellent Coating
High Peeling Strength
Lightweight and Rigidity
Color Uniformity and Durability
Excellent Insulation of Thermal Conductivity
Anti-toxicity and Safety
Workability



(Notes: Optional items & customers colors are subject to the respective minimum quantity. )

Package:
Strong wooden case
