Vivid Color PVDF Aluminum Composite Panel Exterior Wall Cladding Materials

Certification
Good quality PVDF Aluminum Composite Panel for sales
Good quality PVDF Aluminum Composite Panel for sales
Jiangyin Hongmao Decoration Material Co.,Ltd is just as the word : NOT FOR THE BIGGEST , BUT FOR THE BEST.

—— Mr James

I'm Online Chat Now

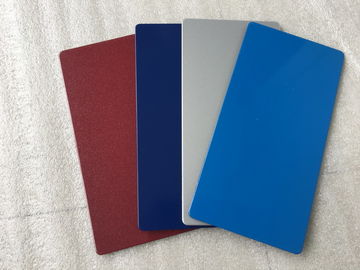

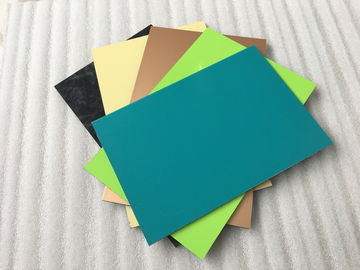

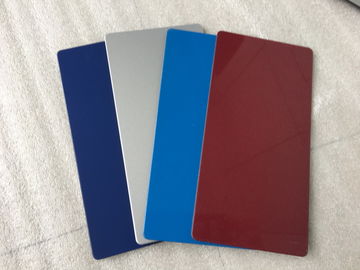

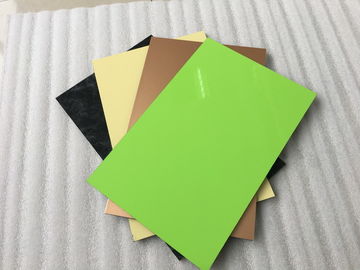

Vivid Color PVDF Aluminum Composite Panel Exterior Wall Cladding Materials

China Vivid Color PVDF Aluminum Composite Panel Exterior Wall Cladding Materials supplier
Vivid Color PVDF Aluminum Composite Panel Exterior Wall Cladding Materials supplier Vivid Color PVDF Aluminum Composite Panel Exterior Wall Cladding Materials supplier Vivid Color PVDF Aluminum Composite Panel Exterior Wall Cladding Materials supplier Vivid Color PVDF Aluminum Composite Panel Exterior Wall Cladding Materials supplier

Large Image :  Vivid Color PVDF Aluminum Composite Panel Exterior Wall Cladding Materials

Product Details:

Place of Origin: CHINA
Brand Name: ALUONTOP
Certification: ISO9001:2008 ISO14001:2015
Model Number: 4* 1500 * 5000mm (0.40/0.40) mm

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: wooden packages or bare loading, according to customer's requirement
Delivery Time: 15 days
Payment Terms: D/A, L/C, D/P, T/T, Western Union
Supply Ability: 250,000 + square meters + per month
Detailed Product Description
COLORS: More Than 60 Standard Colors For Your Choice PACKING: Strong Wooden Packages With Fumigation
MOQ: 500 Sqm For A Single Color And A Single Width Paint: FEVE , PVDF , POLYESTER
SIZE: 4* 1500 * 5000mm (0.40/0.40) Mm ALUMINUM ALLOY: ALLOY3003, ALLOY3105, ALLOY1100

Best quality PVDF Aluminum Composite Panel 4* 1500 * 5000mm (0.40/0.40) mm with vivid color

Dimensions:
4* 1500 * 5000mm (0.40/0.40) mm
Non-standard specifications are available for your choice



Advantages:

Excellent Insulation of Thermal Conductivity
Anti-toxicity and Safety
Workability and vivid color for your choice

High Peeling Strength upto GB standard
Color Uniformity and Durability during 15 years
Lightweight and Rigidity

Excellent Coating



PVDF / FEVE Paint  with Comparison
ITEM PVDF paint FEVE paint
Paint Thickness ≥ 25um ≥ 25um
Hardness of Pencil >F >2H
Coating temperature 232-249°C (15-10min ) 200-220°C (15-12min )
Solvent Resistance Clean 100times without change Clean 100times without change
Adhesion test 100% adhering 100% adhering
Salt Haze Resistance test 5% According to AAMA2605 standard According to AAMA2605 standard
Weather Resistance According to AAMA2605 standard According to AAMA2605 standard
Gloss Maintain According to AAMA2605 standard According to AAMA2605 standard
60°Mirror Gloss 15-35 15-60
Paint composition 70% PVDF Kynar 500 or Hylar 5000 100% Fluoropolymer (FEVE)
Cleaning Resistance ≥10000 times without change ≥10000 times without change
Acid Resistance Immerse Surface with 5% HCL(v/v) for 24h without change Immerse Surface with 5% NaOH(m/m) for 24h without change
Wear Resistance Good Good
Abrasion resistance over 40 over 50
Water sealing performance 38°Cx24 hours soaking 100% no bubble 100% no bubble
Color difference Installation technique affect more to the color difference Installation technique affect less to the color difference


Specifications:
1. Standard:
PVDF paint
Total thickness: 2mm - 8mm
Alu. Thickness: 0.3mm, 0.35mm, 0.4mm, 0.45mm, 0.5mm ,0.60mm
Width: 1220, 1250,1500,1550,2000mm Maximum 2000mm (Special width is also available)
Length: standard length 2440,3050,3660, 4880mm or any length you need
Other specifications available, according to customers' requirements



Various standard colors and custom colors are available for your choice.

Custom dimensions are available according to customers' requirements
High impact resistance and good plasticity
Efficiently lightened burden for walls
Strengthened impact resistance for constructions
Great weather adaptabilities, high intensity, and easy maintenance
Perfect sound insulation, thermal resistance and fire retardant capability
Easy installation, apparently shortened installation time
Quality warranty: 20-year warranty for PVDF aluminum composite panels

(Notes: Optional items & customers colors are subject to the respective minimum quantity. )

Package:
Strong wooden case
