Colorful Aluminum Composite Material , Exterior Cladding Materials For Buildings

Certification
Good quality PVDF Aluminum Composite Panel for sales
Good quality PVDF Aluminum Composite Panel for sales
Jiangyin Hongmao Decoration Material Co.,Ltd is just as the word : NOT FOR THE BIGGEST , BUT FOR THE BEST.

—— Mr James

I'm Online Chat Now

Colorful Aluminum Composite Material , Exterior Cladding Materials For Buildings

China Colorful Aluminum Composite Material , Exterior Cladding Materials For Buildings supplier
Colorful Aluminum Composite Material , Exterior Cladding Materials For Buildings supplier Colorful Aluminum Composite Material , Exterior Cladding Materials For Buildings supplier

Large Image :  Colorful Aluminum Composite Material , Exterior Cladding Materials For Buildings

Product Details:

Place of Origin: CHINA
Brand Name: ALUONTOP or OEM BRAND
Certification: ISO9001:2008, ISO14001:2015
Model Number: 2,000 x 5,700 x 6mm (0.50/0.50mm)

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Strong wooden packages according to customer requirements
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 250,000 + square meters + per month
Detailed Product Description
ALUMINUM ALLOY: ALLOY 1100 , ALLOY5005 COLOR: Any Color Is Available For You To Choose
PACKING STANDARD: Strong Wooden Packages SIZE: 2,000 X 5,700 X 6mm (0.50/0.50mm)
PAINT: FEVE Paint, PVDF Paint MOQ: 500 Square Meter

Spectra Yellow PVDF paint Aluminum Composite Material with 2,000 x 5,700 x 6mm (0.50/0.50mm) for wall cladding

Dimensions:
2,000 x 5,700 x 4mm (0.50/0.50mm)
Non-standard panels are available, Maximum width is 2,000mm

Items (PVDF ACP) Standard Index Result Conclusion
Appearance Clean Surface without swell, scrath and aberration Pass Qualified
Deviation of Dimension Deviation of Diagonal: ≤5mm 1mm Qualified
Thickness of Coating ≥25um 27u(av.30) Qualified
Hardness of Pencil ≥HB H Qualified
Toughness of Coating ≤2T 2T Qualified
Impact Strength 50 Kg.cm Without paint off and crack Pass Qualified
Boiling Water Resistance Boiling for 2h without change Unchanged Qualified
Acid Resistance Immerse Surface with 5% HCI(v/v) for 24h without change Unchanged Qualified
Alkali Resistance Immerse Surface with 5% NaOH(m/m) for 24h without change Unchanged Qualified
Solvent Resistance Clean 100times without change Bottom unrevealed Qualified
Cleaning Resistance ≥10000 times without change Unchanged Qualified
Bend Strength ≥100Mpa 121Mpa Qualified
Flexuous Modulus of Elasticity ≥2.0x10 4 Mpa 3.12x10 4 Mpa Qualified
Cutting Strength ≥28.0 Mpa 32.0 Mpa Qualified
180°Peel strength ≥7.0 N/mm 11.2N/mm Qualified
Salt Haze Resistance(3000h) Not less than Grade 2 Grade 1 Qualified
Artificial Weathering(4000h) Artificial Resistance Aberration ≤4.0 1.24 Qualified
Aging Resistance out of Light Not less than Grade 2 Grade 1 Qualified



Specifications:
1. Standard Width: 1000mm, 1250mm,1500mm,1570mm,1980mm (Special width is also available for you choice)
    Standard Length:  2440mm,3050mm,3660mm, 4880mm ,5000mm or any length you need



Total Aluminum Composite Material thickness: 3mm, 4mm, 5mm, 6mm, 7mm, 8mm
AluminumThickness: 0.3mm, 0.35mm, 0.4mm, 0.45mm, 0.5mm



Advantages:
Excellent Coating
High Peeling Strength
Lightweight and Rigidity
Color Uniformity and Durability
Excellent Insulation of Thermal Conductivity
Anti-toxicity and Safety
Workability


Other specifications available, according to customers' requirements
3) Various colors available, according to customers' requirements
4) High impact resistance and good plasticity
5) Efficiently lightened burden for walls
6) Strengthened impact resistance for constructions
7) Great weather adaptabilities, high intensity, and easy maintenance
8) Perfect sound insulation, thermal resistance and fire retardant capability
9) Easy installation, apparently shortened installation time
10) Quality warranty:
A) 10-year guarantee for polyester aluminum composite panels

(Notes: Optional items & customers colors are subject to the respective minimum quantity. )

Package:
Strong wooden case

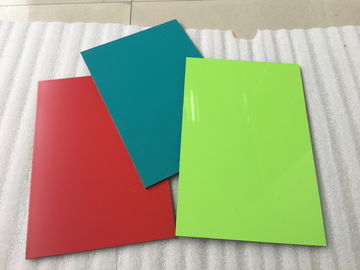

Colorful Aluminum Composite Material , Exterior Cladding Materials For Buildings

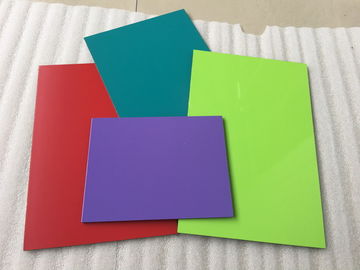

Colorful Aluminum Composite Material , Exterior Cladding Materials For Buildings
