Green Alucobond Sign Board / Aluminum Sign Material With Weather Resistance

Large Image : Green Alucobond Sign Board / Aluminum Sign Material With Weather Resistance

Product Details:

Brand Name:	OEM
Certification:	ISO9001:2008 , ISO14001:2015
Model Number:	200036003mm (0.21/0.21mm)

Payment & Shipping Terms:

Minimum Order Quantity:	negotiation
Price:	negotiation
Packaging Details:	Strong wooden packages
Delivery Time:	15 days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	250,000 + square meters + per month

Contact Now

Detailed Product Description

Specification:	200036003mm (0.21/0.21mm)	COLOR:	Custom Colors Are Available
Packing:	Strong Wooden Packages With Fumigation	ALUMINUM ALLOY:	Alloy 3105, Alloy 1100, Alloy 3003, Alloy 5005
MOQ:	600 Square Meters For A Single Specification	Paint:	Polyester Coating
Highlight:	aluminium composite sign board , acp panel sign board material

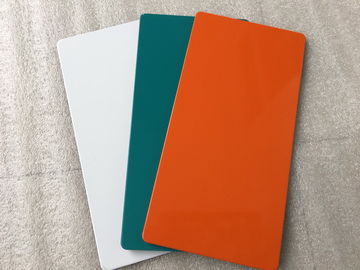

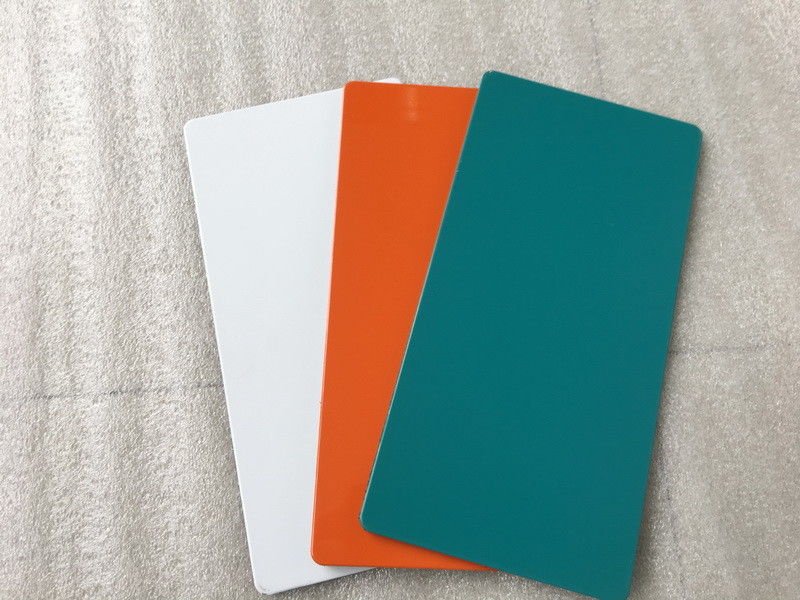

Polyester paint Aluminum Sign Panels 2000*3600*3mm (0.21/0.21mm) with Green color

Dimensions:
2000*3600*3mm (0.21/0.21mm)
Other specifications available according to customers' requirements
3) Light weight and Efficiently lightened burden for walls
4) High impact resistance and good plasticity
5) Various colors available, according to customers' requirements
6) Strengthened impact resistance for constructions
7) Great weather adaptabilities, high intensity, and easy maintenance
8) Perfect sound insulation, thermal resistance and fire retardant capability
9) Easy installation, apparently shortened installation time
10) Quality warranty: 10-year guarantee for polyester Aluminum Sign Panels

Polyester coating Aluminum Sign Panels		Standard Index	Result	Conclusion
Appearance		Clean Surface without swell, scrath and aberration	Pass	Qualified
Deviation of Dimension		Deviation of Diagonal: ≤5mm	1mm	Qualified
Thickness of Coating		≥18um	19um	Qualified
Hardness of Pencil		≥HB	2H	Qualified
Toughness of Coating		≤2T	2T	Qualified
Impact Strength		30 Kg.cm Without paint off and crack	Pass	Qualified
Boiling Water Resistance		Boiling for 2h without change	Unchanged	Qualified
Acid Resistance		Immerse Surface with 2% HCI(v/v) for 24h without change	Unchanged	Qualified
Alkali Resistance		Immerse Surface with 2% NaOH(m/m) for 24h without change	Unchanged	Qualified
Solvent Resistance		Clean 200 times without change	Bottom unrevealed	Qualified
Cleaning Resistance		≥10000 times without change	Unchanged	Qualified
Bend Strength		≥100Mpa	121Mpa	Qualified
Flexuous Modulus of Elasticity		≥2.0x10 4 Mpa	3.12x10 4 Mpa	Qualified
Cutting Strength		≥28.0 Mpa	32.0 Mpa	Qualified
180°Peel strength		≥7.0 N/mm	11.2N/mm	Qualified
Salt Haze Resistance(3000h)		Not less than Grade 2	Grade 1	Qualified
Artificial Weathering(4000h)	Artificial Resistance Aberration	≤4.0	1.24	Qualified
Artificial Weathering(4000h)	Aging Resistance out of Light	Not less than Grade 2	Grade 1	Qualified

(Notes: Optional items & customers colors are subject to the respective minimum quantity. )

Packing: Strong wooden packages or Iron pallets

Specifications:
1. Standard:
Width: 1220mm, 1270mm,1500mm,1550mm,2000mm (Special width is also available)
Length: standard length 2440mm,2500mm,3660mm, 4880mm ,5000mm or any length you need

Polyester paint:
Total thickness:2mm, 3mm, 4mm, 5mm, 6mm, 7mm,8mm
Aluminum Thickness: 0.10mm, 0.12mm, 0.15mm, 0.18mm, 0.21mm, 0.25mm, 0.30mm, 0.35mm, 0.40mm, 0.45mm, 0.50mm
