NOT FOR THE BIGGEST, BUT FOR THE BEST!

Home ProductsACP Aluminium Composite Panel

PVDF Paint ACP Aluminium Composite Panel , Aluminium Plastic Composite Panel

Jiangyin Hongmao Decoration Material Co.,Ltd is just as the word : NOT FOR THE BIGGEST , BUT FOR THE BEST.

—— Mr James

I'm Online Chat Now

PVDF Paint ACP Aluminium Composite Panel , Aluminium Plastic Composite Panel

China PVDF Paint ACP Aluminium Composite Panel , Aluminium Plastic Composite Panel supplier
PVDF Paint ACP Aluminium Composite Panel , Aluminium Plastic Composite Panel supplier PVDF Paint ACP Aluminium Composite Panel , Aluminium Plastic Composite Panel supplier

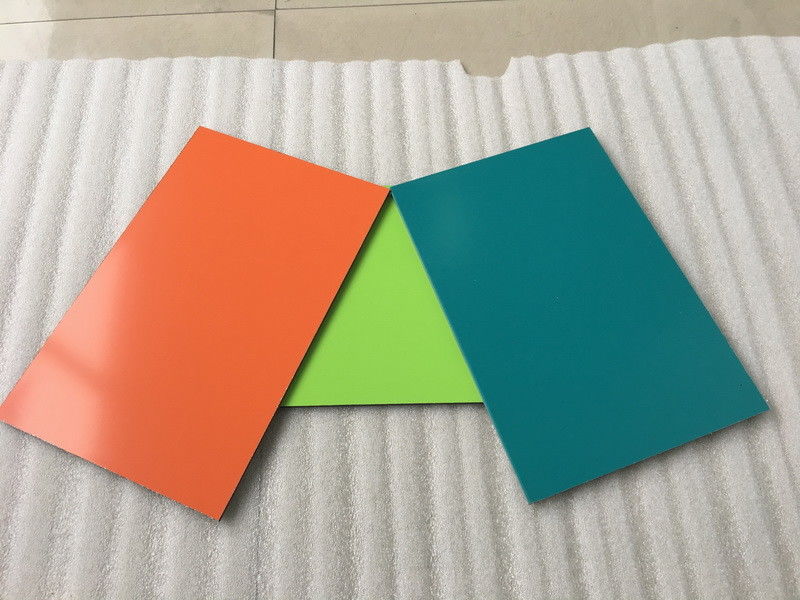

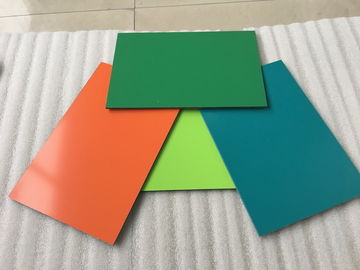

Large Image :  PVDF Paint ACP Aluminium Composite Panel , Aluminium Plastic Composite Panel

Product Details:

Brand Name: OEM
Certification: ISO9001:2008 ISO14001:2015
Model Number: 5* 2000 * 5600mm (0.50/0.50mm)

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: wooden packages or bare loading, according to customer's requirement
Delivery Time: 15 days
Payment Terms: D/A, L/C, D/P, T/T, Western Union
Supply Ability: 250,000 + square meters + per month
Contact Now
Detailed Product Description
ALUMINUM ALLOY: Alloy 1100, Alloy 3003, Alloy 5005 COLOR: Custom Colors Are Available For You
SIZE: Strong Wooden Packages With Fumigation MOQ: 700 Sqm For A Single Color And A Single Width
Paint: FEVE Paint, PVDF Paint
High Light:

aluminum composite building panels

,

aluminum composite metal panels

Spectra ACP Aluminium composite panel 5* 2000 * 5600mm (0.50/0.50mm) with PVDF paint

Dimensions:
5* 2000 * 5600mm (0.50/0.50mm)
Panel Thickness:4mm
Aluminum Skin Thickness: 0.5mm
Aluminum Alloy: 3003, 5005
Coating:PVDF/ FEVE
Core:Fireproof or unbroken core
Function:Fireproof, waterproof ,mouldproof ,dustproof and rustproof
Usage:External Wall, Curtain Wall, Advertising
Brand: ALUONTOP or OEM Service Avaiable
Delivery Time:10 to 25 Days
Production Capacity:10,000 Square meters /Day


Advantages:
Color Uniformity and Durability during the warranty years
High Peeling Strength upto GB standard
Lightweight and Rigidity compared with other products
Excellent Insulation of Thermal Conductivity
Anti-toxicity and Safety
Workability during installation

Excellent Coating



Characteristics:
1. Standard:
Total thickness: 4mm
Alu. Thickness: 0.30/0.30mm
Width: from 1,000mm to 2,000mm Maximum 2000mm (Special width is also available)
Length: standard length 2000mm, 3050mm, 3660mm ,4880mm ,5000mm ,5700 mm or any length upon your requirement



Items (PVDF ACP) Standard Index Result Conclusion
Appearance Clean Surface without swell, scrath and aberration Pass Qualified
Deviation of Dimension Deviation of Diagonal: ≤5mm 1mm Qualified
Thickness of Coating ≥25um 27u(av.30) Qualified
Hardness of Pencil ≥HB H Qualified
Toughness of Coating ≤2T 2T Qualified
Impact Strength 50 Kg.cm Without paint off and crack Pass Qualified
Boiling Water Resistance Boiling for 2h without change Unchanged Qualified
Acid Resistance Immerse Surface with 5% HCI(v/v) for 24h without change Unchanged Qualified
Alkali Resistance Immerse Surface with 5% NaOH(m/m) for 24h without change Unchanged Qualified
Solvent Resistance Clean 100times without change Bottom unrevealed Qualified
Cleaning Resistance ≥10000 times without change Unchanged Qualified
Bend Strength ≥100Mpa 121Mpa Qualified
Flexuous Modulus of Elasticity ≥2.0x10 4 Mpa 3.12x10 4 Mpa Qualified
Cutting Strength ≥28.0 Mpa 32.0 Mpa Qualified
180°Peel strength ≥7.0 N/mm 11.2N/mm Qualified
Salt Haze Resistance(3000h) Not less than Grade 2 Grade 1 Qualified
Artificial Weathering(4000h) Artificial Resistance Aberration ≤4.0 1.24 Qualified
Aging Resistance out of Light Not less than Grade 2 Grade 1 Qualified




Other specifications available, according to customers' requirements
3) Various colors available, according to customers' requirements
4) High impact resistance and good plasticity
5) Efficiently lightened burden for walls
6) Strengthened impact resistance for constructions
7) Great weather adaptabilities, high intensity, and easy maintenance
8) Perfect sound insulation, thermal resistance and fire retardant capability
9) Easy installation, apparently shortened installation time
10) Quality warranty:
A) 20-year guarantee for PVDF aluminum composite panels


(Notes: Optional items & customers colors are subject to the respective minimum quantity. )

Package:
Strong wooden case



PVDF Paint ACP Aluminium Composite Panel , Aluminium Plastic Composite PanelPVDF Paint ACP Aluminium Composite Panel , Aluminium Plastic Composite Panel

PVDF Paint ACP Aluminium Composite Panel , Aluminium Plastic Composite Panel
