Quartz Color Zinc Flat Composite Panels Easy Maintenance With Smooth Surface

China Quartz Color Zinc Flat Composite Panels Easy Maintenance With Smooth Surface supplier

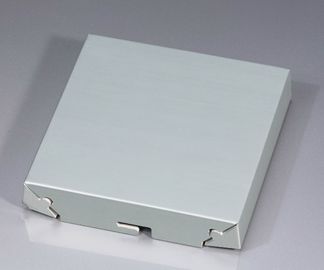

Large Image :  Quartz Color Zinc Flat Composite Panels Easy Maintenance With Smooth Surface

Product Details:

Brand Name: OEM
Certification: ISO9001:2008
Model Number: 980*5000*4mm (0.70/0.70mm)

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Strong wooden packages
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 50,000 + square meters + per month
Contact Now
Detailed Product Description
DIMENSION: 980*5000*4mm (0.70/0.70mm) Zinc Thickness: 0.50mm,0.70mm
MOQ: 500 Square Meters For A Single Specification PACKAGE: Strong Wooden Packages With Fumigation
Color: Quartz Color Surface: Smooth Surface
High Light:

zinc wall cladding

,

zinc cladding panels

Quartz color Zinc composite panel 980*5000*4mm (0.70/0.70mm) for wall cladding

SPECIFICATION: 980*5000*4mm (0.70/0.70mm)

Panel Thickness 4mm, 5mm, 6mm
Optional Core fr core, Poly Ethlene, honeycomb aluminum
Width 980mm, 1240mm
Length 2440mm, 3200mm, 4000mm, 5800mm
Zinc VMZINC

Zinc composite panel is a kind of new high grade construction, takes titanium zinc plate as its face plate, and aluminum as rear plate, high-pressure low density polythene (LDPE) as core materials.



There is no need for Zinc Surface to make any painting and any other corrosion treatment, because it has a natural layer of dense oxide (Zinc carbonate ), and prevent further erosion.
With self-healing function, the Zinc panel can automatically heal without leaving traces after some time.

It combines Zinc plate characteristics (metallic feeling, self-healing, long life, good flexible) with the advantage of high strength, smooth and good, light weight, low price of composite panel. It can be used in the high-grade building walls, roof and interior decoration

Long service life manifested in .

Even under the poor atmosphere condition, the service life for 1mm thick Zinc will be more than 200 years.

Top ZINC Thickness(mm) Rear Aluminium Thickness(mm) Total Thickness (mm) Intensity Equal to Solid ZINC Thickness(mm)
0.5 0.5 4.0 2.5
0.7 0.7 4.0 3.0



Test Item Unit Performance Indicator
Flexural Strength Mpa ≥60
Flexural Modulus 104 Mpa ≥2.0
Penetrating Resistance KN ≥7.0
Shear Strength Mpa ≥22.0
180°Peel off Strength N/mm ≥7.0
Thermal Expansion ≤ 4.00×10-5
Thermal Deformation Temperature ≥95
Boiling water Resistance No effect
Fire Resistance GB8624 Class B
